Single-Shaft Shredder for Rubber & Elastic Plastics
Engineered with a specialized 3-claw rotor, this shredder delivers the aggressive gripping and cutting force needed to process tough materials like rubber tires, TPE, and silicone scrap with unmatched efficiency.
The Cost-Effective Solution for Tough Materials
While dual-shaft shredders have their place, our specialized single-shaft model provides a powerful, lower-maintenance, and more economical alternative for processing large, elastic materials.
Aggressive 3-Claw Rotor Design
The unique three-clawed blades are engineered to aggressively hook and pull in bulky, elastic materials, preventing bouncing and ensuring a consistent, high-throughput shredding process.
High-Torque Hydraulic Drive
Our specially designed hydraulic drive delivers optimal, consistent torque that powers through extreme conditions without stalling, providing superior performance over standard electric drives.
Engineered for Durability
Features D2 equivalent steel blades for high wear resistance, quadruple-sealed bearings to prevent leaks, and an enhanced shock absorption system to protect critical components.
The Shredding Process
A straightforward, powerful, and effective method for reducing the volume of challenging materials.
Material Feed
Bulky rubber or plastic materials are loaded into the shredder's hopper.
Hydraulic Ram Action
A hydraulic-assisted pusher ram automatically presses the material against the rotating shredder shaft.
Shredding & Cutting
The slow-rotating 3-claw blades grip and cut the material against stationary knives inside the chamber.
Sized Discharge
Material is repeatedly cut until it is small enough to pass through a heavy-duty sizing screen at the base of the machine.
Ideal Applications
This shredder excels where standard granulators fail, making it essential for specific recycling and processing operations.
Target Materials
Car & Truck Tires, Industrial Rubber Scrap, Silicone Sheets & Blocks, TPE (Thermoplastic Elastomer) Purgings, EVA (Ethylene-Vinyl Acetate) Sheets, Large Plastic Lumps & Bales.
Common Industries
Tire Recycling Facilities, Automotive Parts Manufacturing, Rubber & Plastics Processing Plants, Post-Industrial Waste Management, Footwear Manufacturing.

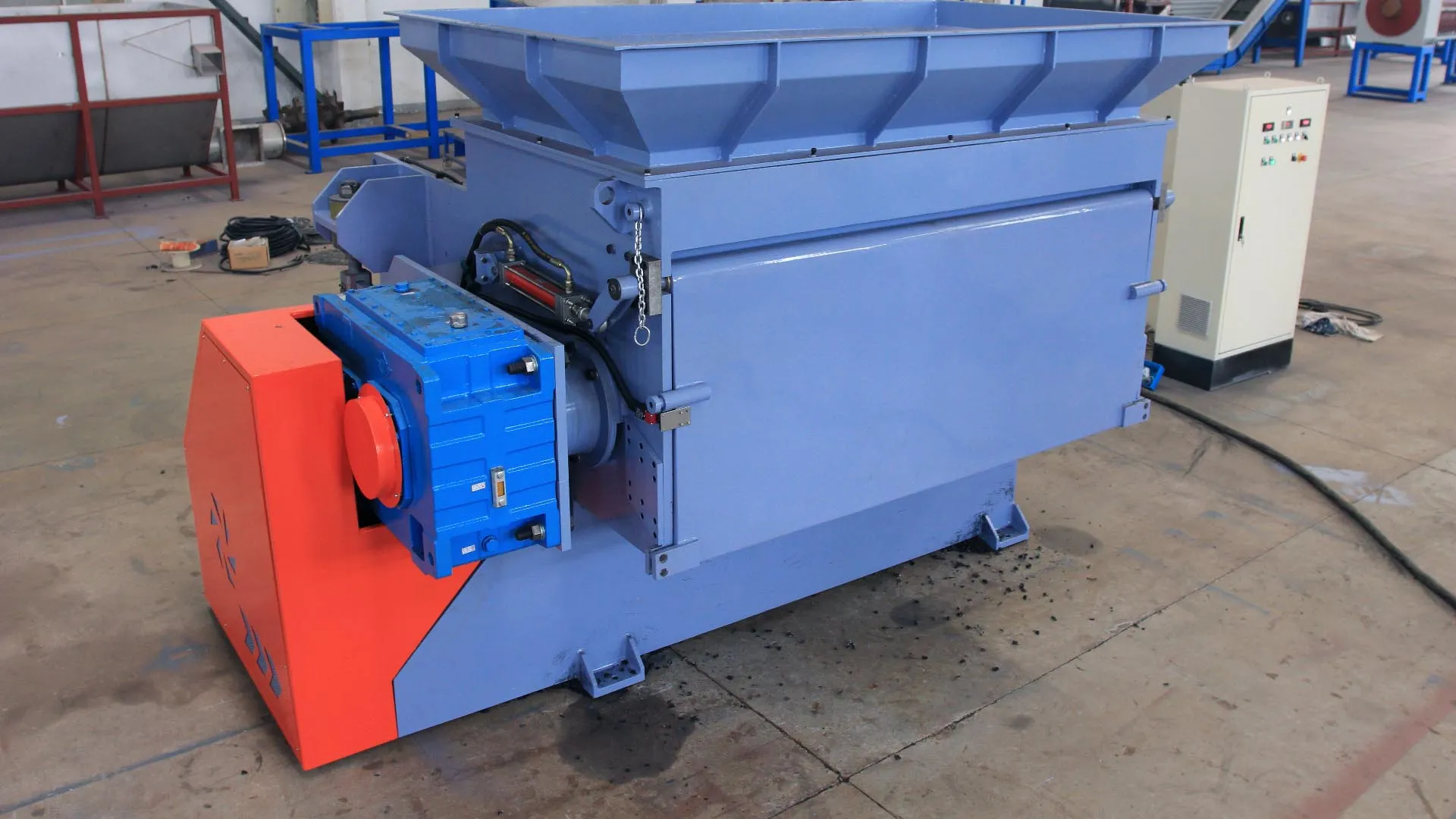

Machine Gallery
Technical Specifications
| Model | Motor Power | Shaft Diameter | Rotary Speed | Capacity |
|---|---|---|---|---|
| BS-1000 | 45 kW | ⌀ 450 mm | 55 rpm | 1000 kg/h |
| BS-2000 | 110 kW | ⌀ 500 mm | 45 rpm | 3000 kg/h |
| BS-3000 | 2x 110 kW | ⌀ 550 mm | 40 rpm | 5000 kg/h |
*Capacity varies based on material type, density, and screen size.
*CE certification available. Larger, more powerful models available upon request.
Frequently Asked Questions
Why choose this single-shaft shredder over a dual-shaft model?
For bulky, elastic materials, our specialized single-shaft shredder offers a significant cost advantage and simpler maintenance compared to dual-shaft machines. The hydraulic ram ensures material is consistently fed into the rotor, a task that can be challenging for some dual-shaft designs with these material types.
What makes the 3-claw rotor better for rubber and elastic plastics?
Standard shredder rotors can struggle to grip and pull in elastic or rubbery materials, causing them to "bounce" on top of the cutters. The aggressive hook shape of the 3-claw design effectively grabs these materials and forces them into the cutting zone, dramatically improving efficiency and throughput.
What maintenance is typically required?
Routine maintenance includes checking hydraulic fluid levels, lubricating bearings, and inspecting the blades for wear. The cutter blades are reversible and can be rotated to provide a new cutting edge before needing to be replaced. Our two-part housing design simplifies access to the rotor for convenient maintenance.
Get a Quote for Your Shredding Application
All recycling machines come with a 1-year limited warranty. To get the latest prices and lead times, tell us about your material and throughput requirements using the form below.
