Екстра велике машине за гранулацију чврсте пластике

This Extra Large model of our robust plastic granulator machine is engineered for high-capacity granulation of large-sized rigid plastics such as drums, pots, baby seats, pallets, and more. You can select from four potent models with capacities ranging from 300 kg/hr up to 1200 kg/hr.

If you’re seeking a more compact plastic granulator for rigid plastics, see our standard rigid plastic granulator machines.

Working principle

Similar to our standard rigid plastic granulator machines, our Extra Large model granulators are designed to crush large pieces of rigid plastics with a thickness below 2 cm. If you’re looking to cut thicker rigid plastic materials, please explore our single-shaft shredders.

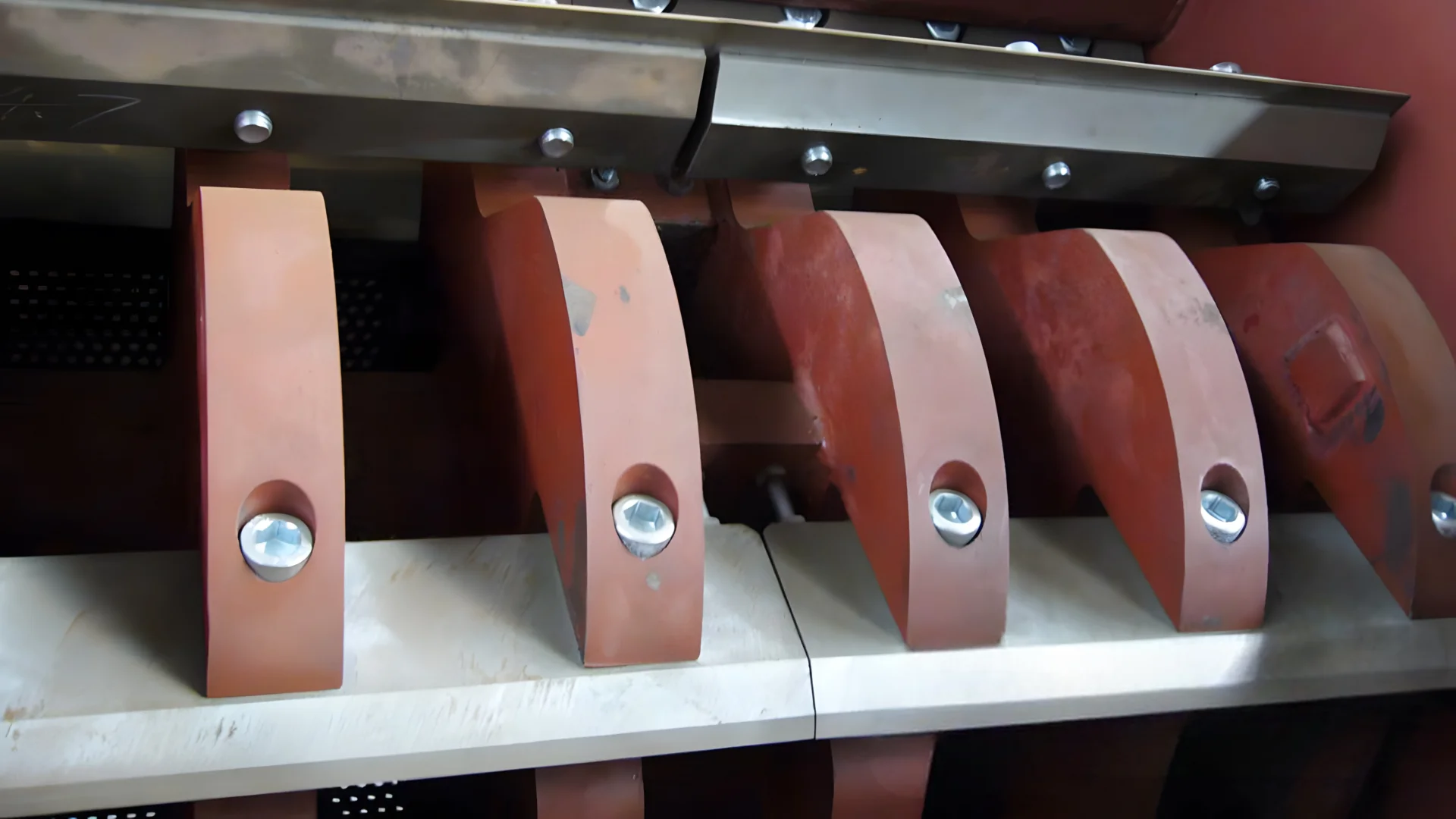

Inside the cutting chamber of this rigid plastic granulator, multiple premium D2 steel blades are affixed to a wide open rotor. These claw-like blades are specially heat treated to enhance strength, corrosion resistance, and durability, ensuring the granulator remains operational for longer cycles without needing to sharpen the blades.

As the rotor spins, the numerous rotary blades come into contact with stationary blades attached to the cutting chamber walls, resulting in the rigid plastic being continuously cut. The blades are strategically aligned in a step design to minimize pressure buildup and boost cutting force. As the plastic becomes progressively smaller, a screen filter at the bottom of the granulator allows small pieces of cut plastic to pass through, exiting the machine.

This rigid plastic granulator provides easy access to the cutting chamber for hassle-free cleaning. When the blades become dull, they can be easily removed for repeated sharpening.

Instead of outsourcing your blade sharpening, why not reduce your monthly expenses by professionally sharpening the blades yourself with a fully automatic granulator blade sharpening machine?

Technical specifications

Модел	Снага мотора	Qty Rotary Blades	Qty Fixed Blades	Cutting Chamber Size	Капацитет
SW-600	37 kw	3×2	2×2	600 mm	300 kg/hr
SW-800	55 kw	3×3	2×2	800 mm	600 kg/hr
SW-1000	75 kw	3×3	2×2	1000 mm	1000 кг/сат
SW-1200	90 kw	3×4	2×3	1200 mm	1200 kg/hr

*ЦЕ сертификат доступан.
*Larger, more powerful models available upon request.

Additional images

Гаранција

Све машине за рециклажу долазе са једногодишњом ограниченом гаранцијом.
