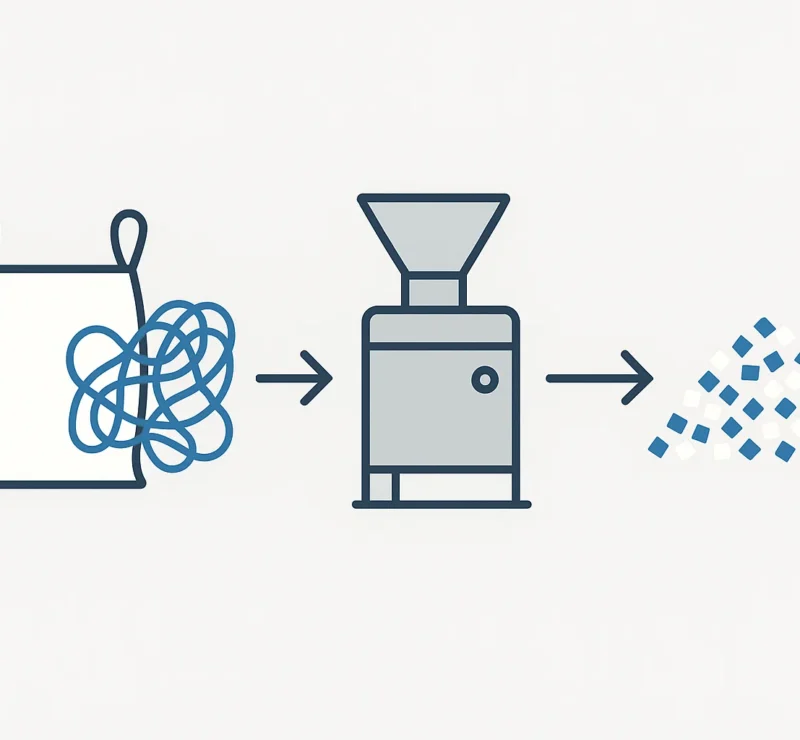

Shredding industrial materials like FIBC tonne bags and fishing nets presents a unique operational challenge. Their tough, fibrous nature can cause entanglement, downtime, and excessive wear on standard machinery. This comprehensive guide from Energycle Machine breaks down the critical technical details you need to know—from specialised rotor designs to intelligent feed systems—to select the right single-shaft shredder and turn this problematic waste stream into a profitable resource. Explore the expert insights you need to master this demanding application.

Introduction: The Hidden Complexity in End-of-Life Carpets

In the drive towards a circular economy, the recycling of bulky waste streams presents both significant challenges and immense opportunities. Amongst these, end-of-life carpets represent a vast, untapped resource. Every year, millions of tonnes of carpet are sent to landfill across Europe and the USA, a figure that is both environmentally unsustainable and economically wasteful. For manufacturers and recycling professionals, turning this waste into a valuable commodity is a logical and profitable next step.

However, a common and costly misconception often derails these efforts at the very first stage: size reduction. Many businesses, equipped with shredders designed for materials like metal or plastic, assume these powerful machines can handle anything. They soon discover that carpets are a uniquely formidable opponent.

Attempting to process carpets with a standard shredder is not just inefficient; it can lead to catastrophic equipment failure, costly downtime, and a poor-quality, unsaleable output. This article will explore the specific technical reasons why carpets demand a specialised approach and detail why a professional textile shredder is not a luxury, but a necessity for any serious recycling operation.

The Anatomy of a Problem: What Makes Carpet So Difficult to Shred?

To understand why standard shredders are unsuitable, we must first appreciate what a carpet actually is. Far from being a simple textile, a modern carpet is a complex composite material, engineered for durability, comfort, and resilience. This very engineering is what makes it so challenging to deconstruct.

1. A Composite Nightmare of Materials

A typical carpet consists of two main parts: the face fibre (the pile you walk on) and the backing system.

• Face Fibres: These are long, incredibly tough, and tenacious synthetic polymers like Nylon 6, Nylon 6,6, Polypropylene (PP), and Polyester (PET), or natural fibres like wool. Their high tensile strength is designed to resist tearing and wear.





• Backing Systems: The backing is a multi-layered system that holds the fibres in place. It often includes a primary backing (usually woven PP), an adhesive layer (commonly SBR Latex, PVC, or Polyurethane), and a secondary backing for dimensional stability. Some commercial carpet tiles use bitumen or other heavy, abrasive fillers.

This combination of soft, pliable fibres and tough, abrasive, and sometimes sticky backing materials creates a processing nightmare for a machine not designed to handle it.

2. The Wrapping and Clogging Phenomenon

This is perhaps the most significant challenge. Unlike rigid plastic or brittle metal which fractures and breaks, long carpet fibres do not. When fed into a standard shredder, especially one with a single, fast-rotating shaft, the fibres immediately begin to wrap themselves around the rotor and cutting tools.

This wrapping effect leads to a cascade of problems:

• Rapid Jamming: The wrapped material builds up, choking the cutting chamber and bringing the machine to a grinding halt.





• Overheating and Melting: The friction from the wrapped fibres generates immense heat. This can melt the synthetic fibres (like nylon and polypropylene), creating a solid, plasticised mass that is extremely difficult to remove.





• Bearing and Drivetrain Stress: The constant struggle against the wrapped material puts enormous strain on the motor, gearbox, and bearings, leading to premature and costly failures.

3. Extreme Abrasion and Contamination

Carpets live on the floor. Throughout their life, they accumulate grit, sand, staples, and other abrasive contaminants. When combined with the abrasive nature of latex or bitumen backings, this creates a highly aggressive environment for cutting tools. Standard steel blades, designed for shearing plastic or fracturing metal, will dull at an astonishing rate, drastically increasing maintenance costs and downtime.

---

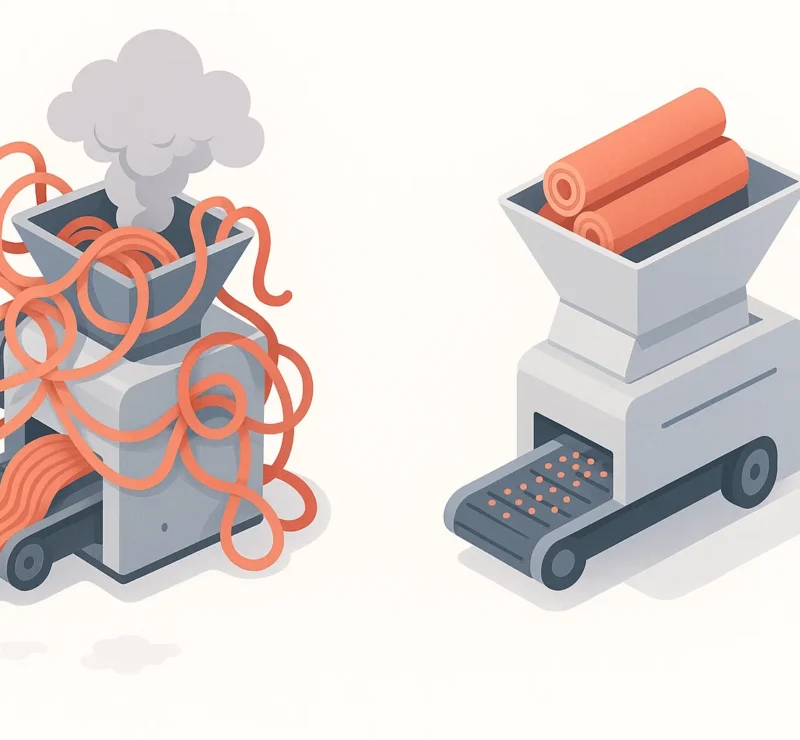

Standard Shredders vs. Carpet: A Technical Mismatch

Now, let's examine why the specific designs of metal and plastic shredders make them fundamentally unsuited for this task.

Metal Shredders: Brute Force Meets a Pliable Foe

Metal shredders are typically low-speed, high-torque machines. They use immense force to tear, shear, and fracture rigid, brittle materials. Their cutting tools are thick and robust, designed to withstand high impact.

• Why they fail with carpets: Carpets are not brittle. The high torque is wasted as the pliable material simply stretches, bends, and wraps around the slow-moving shafts. The shredder cannot get a clean "bite" to initiate a cut. Instead of shredding, it entangles, creating the jamming scenario described above.

Plastic Shredders & Granulators: High Speed vs. High Tenacity

Plastic shredders and granulators operate on a different principle. They typically use a high-speed, open rotor with sharp, precisely angled knives that shear or "chip" away at rigid plastics.

• Why they fail with carpets: The high rotational speed is a disaster for fibrous materials. It exacerbates the wrapping effect almost instantly. The sharp, thin blades are highly susceptible to damage from the abrasive contaminants in carpets and will dull quickly. Furthermore, the high speed generates friction and heat, often melting the carpet fibres into a solid block, which can destroy the cutting chamber.

A comparative workflow chart illustrating the difference in processing.

Process Stage	Standard Shredder (e.g., Plastic Granulator)	Energycle Machine Specialist Carpet Shredder
Material Infeed	Low-density carpet "floats" above the rotor, difficult to grip.	Hydraulic ram actively forces material into the rotor for a positive feed.
Акција сечења	High-speed knives snag long fibres, initiating wrapping.	Specially shaped, slow-speed cutters shear against a counter-knife, preventing wrapping.
Пропусност	Frequent jamming and downtime for cleaning. Material melts from friction.	Continuous, steady processing with minimal interruption.
Blade Wear	Rapid dulling from abrasive backing and grit. Frequent replacement needed.	Hardened, wear-resistant steel blades provide a long service life.
Излаз	Inconsistent, often containing long uncut strips and melted clumps.	Uniform, controlled particle size determined by an interchangeable screen.

---

The Engineered Solution: Anatomy of a Specialist Carpet Shredder

Recognising these unique challenges is the first step. The second is engineering a machine specifically to overcome them. At Energycle Machine, we have invested significant research and development into creating robust solutions for problematic waste streams. A shredder designed for carpets is not a modified plastic shredder; it is a purpose-built piece of equipment.

Here are the key design elements that set a professional carpet shredder apart:

• Specialised Anti-Wrapping Rotor Design: This is the heart of the machine. Instead of a simple cylindrical rotor, our carpet shredders feature a segmented or specially profiled rotor. The cutters are arranged in a specific pattern that actively works to prevent long fibres from winding around the shaft, ensuring a continuous cutting action.





• Advanced Cutter and Blade Technology: We utilise uniquely shaped, concave cutters made from proprietary hardened steel alloys. These cutters provide a slicing, tearing action rather than a high-speed shear. This robust design is far more resistant to the abrasion from carpet backing and embedded grit, dramatically extending blade life and reducing operational costs.





• Intelligent Hydraulic Pusher (Ram): Carpets are bulky but not dense. A gravity-fed system is inefficient. Our shredders incorporate a load-sensing hydraulic ram that forcefully and intelligently pushes the carpet material into the rotor. This ensures a constant, positive feed pressure, preventing material from "dancing" on top of the rotor and maximising throughput.





• Screen Classification for Precise Output: Effective recycling requires a consistent, homogenous feedstock for the next process (e.g., pyrolysis, extrusion, or fibre reclamation). Our carpet shredders are fitted with heavy-duty, interchangeable screens beneath the cutting chamber. The shredded material is retained until it is small enough to pass through the screen holes, guaranteeing a uniform particle size tailored to your exact requirements. Understanding its unique design is key to appreciating its efficiency.





• Robust Drivetrain with Overload Protection: The power transmission system is engineered to deliver high torque at low speeds, providing the necessary power to tear through dense clumps of backing and fibre without stalling. Advanced electronic and mechanical overload systems protect the entire drivetrain from damage should an un-shreddable object (like a large piece of metal) be accidentally introduced.

By integrating these features, an Energycle Machine single-shaft shredder transforms the problematic task of carpet shredding into a smooth, efficient, and profitable industrial process. We invite you to view this carpet shredder to see these principles in action.

The ROI of Specialisation: Why the Right Machine Pays for Itself

Investing in a specialised carpet shredder from Energycle Machine is not an expense; it's an investment in productivity and profitability.

• Maximised Uptime and Throughput: Dramatically reduce the downtime associated with clearing jams and cleaning melted plastic, leading to higher processing volumes.





• Consistent, High-Value Output: Produce a uniform, clean-cut, and saleable recycled material, commanding a higher price on the commodities market.





• Drastically Reduced Maintenance Costs: Benefit from significantly longer blade life and reduced wear and tear on core components like motors and bearings.





• Побољшана оперативна безбедност: A machine operating within its design parameters is a safer machine. Eliminate the risks associated with catastrophic jams and overloaded motors.

By choosing the right tool for the job, you turn a liability—bulky carpet waste—into a consistent and valuable revenue stream.

---

Често постављана питања (FAQ)

1. Can a specialised carpet shredder from Energycle Machine also process other textiles?
Absolutely. Our textile shredders are highly versatile. Whilst they are specifically engineered to handle the toughness of carpets, they are also exceptionally effective at processing other fibrous materials like clothing, upholstery, mattresses, and industrial textiles like yarns and rovings.

2. What determines the final size of the shredded carpet material?
The output size is precisely controlled by the perforated screen installed in the machine. Energycle Machine offers a wide range of screen sizes, typically from 20mm to 100mm, allowing you to produce the exact particle size required for your downstream processes. We can advise on the optimal size for your specific application.

3. How do your shredders handle contaminants like metal staples or nails in the carpet?
Our shredders are built for robustness. The high-torque, slow-speed design, combined with hardened steel cutters, can typically shear through small contaminants like staples without issue. For larger metal pieces, our advanced overload detection system will automatically stop or reverse the rotor to prevent damage, protecting your investment.

4. What is the typical maintenance schedule for a specialised carpet shredder?
Maintenance is straightforward and primarily involves regular cutter rotation/replacement and routine checks of the hydraulic and drive systems. Thanks to the wear-resistant materials and robust design, the service intervals for an Energycle Machine shredder are significantly longer than for a standard machine misused for this application, ensuring maximum operational uptime.

Conclusion: Make the Right Choice for Your Operation

The message is clear: carpet is not just another waste material. Its unique composite structure demands more than brute force or high speed; it requires an engineered solution. Attempting to use a standard metal or plastic shredder is a recipe for frustration, financial loss, and failure.

A specialised, purpose-built carpet shredder is the only way to reliably and profitably unlock the value hidden in this challenging waste stream. By investing in a machine designed with the specific challenges of carpet in mind—from anti-wrapping rotors to intelligent feed systems—you equip your operation for success.

Ready to turn your carpet waste problem into a profitable opportunity?

The expert team at Energycle Machine is here to help you select the perfect shredding solution for your specific needs. We analyse your material, throughput requirements, and operational goals to recommend a machine that delivers unmatched performance and reliability.

Contact us today for a no-obligation consultation or to request a detailed quote. Let's build a more profitable and sustainable future, together.
