Tool-Free Bale Tying & Consumables
سلك ربط بالات مجلفن Quick-Lock
Pre-cut, corrosion-resistant galvanized steel wire designed for fast, tool-free tying of paper, OCC, cardboard, plastic film, PET bottles, and textile bales. Featuring quick-lock looped ends that snap together by hand, creating a high-tensile figure-8 lock without separate seals or specialized tools.
Why Choose Quick-Lock Galvanized Baling Wire
Securing dense, high-pressure bales requires wire that balances high tensile strength with ductile tying ease. Quick-lock ties eliminate knotting friction and separate crimping seals.
Tool-Free Hand Snap Lock
Operators simply snap the pre-formed loop ends together by hand. Once pulled, the joint self-locks into an ultra-strong figure-8 knot — cutting tying time by up to 50% compared to manual twist wire.
مقاومة التآكل
Uniform hot-dip galvanized zinc coating shields the steel core from humidity, rain, and corrosive outdoor recycling environments during storage and transit.
High Tensile & Elongation
Manufactured from premium low-carbon steel, twice-annealed for controlled flexibility (12–18% elongation) to absorb sudden bale expansion shocks without snapping.
Consistent Cut-to-Length Ties
Precision-cut standard lengths ensure every bale has uniform circumference and tension, eliminating loose wires, tangled coils, and uneven freight stacks.
How Quick-Lock Baling Wire Works
Follow three simple steps to secure any recyclable material bale safely in seconds without tools.
Feed Around Bale
Thread the pre-cut wire through the baler chamber slots around the compacted bale.
Snap Loop Ends
Insert the formed hook end into the matching loop end by hand — no tools or seals required.
Lock & Release
Pull loops taut into a secure figure-8 lock; release hydraulic ram pressure for a dense, stable bale.
المواصفات الفنية
Standard manufacturing specifications for quick-lock galvanized steel baling wire ties.
| معامل | Standard Specification | Optional Range |
|---|---|---|
| Wire Diameter / Gauge | 2.7 mm – 3.4 mm (10 – 12 Gauge) | 2.0 mm – 4.2 mm (custom) |
| Steel Grade | Q195 / Q235 Low Carbon Steel | High-tensile carbon alloy |
| المعالجة الحرارية | Twice Annealed (soft, pliable) | Hard drawn or semi-annealed |
| Tensile Strength | 350 – 500 N/mm² | Up to 1400 N/mm² for high-pressure bales |
| Elongation Rate | 12% – 18% | Optimized for anti-burst resilience |
| Surface Treatment | Hot-Dip Galvanized (30–60 g/m² zinc) | Electro-galvanized / Black annealed |
| Standard Lengths | 3.2 m, 4.0 m, 4.5 m, 5.4 m | Any custom cut length (2.0 m – 6.0 m) |
| Bundle Packaging | 100 / 125 / 250 pcs per bundle | Wrapped in poly woven bags on wooden pallets |
| Applicable Balers | Vertical balers, semi-automatic horizontal balers, open-gate balers, manual-tie systems | |
| المواد المناسبة | OCC, corrugated cardboard, waste paper, stretch film, PET bottles, aluminum cans, textiles | |
اسحب Laterally لرؤية الجدول كاملاً.

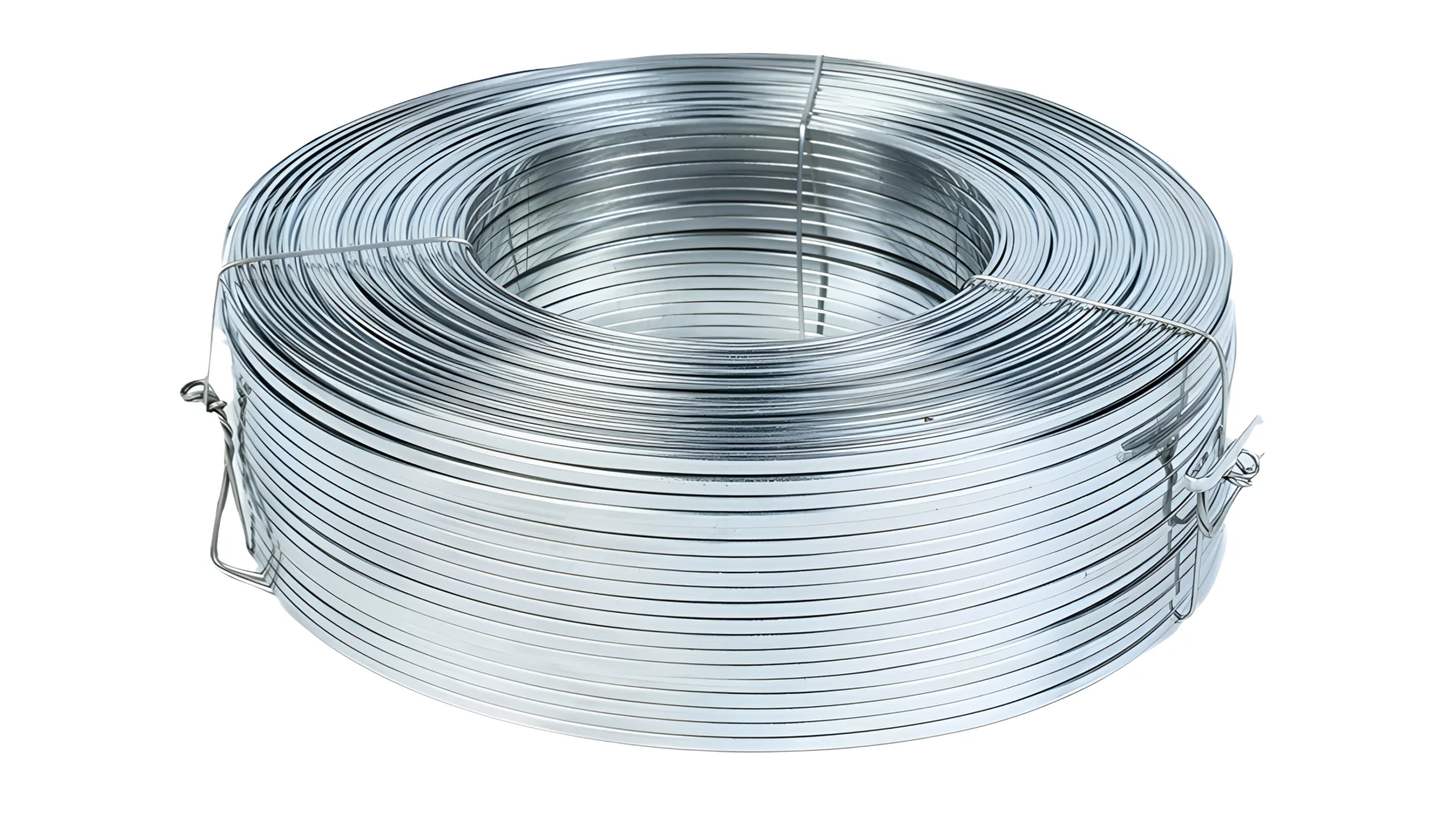

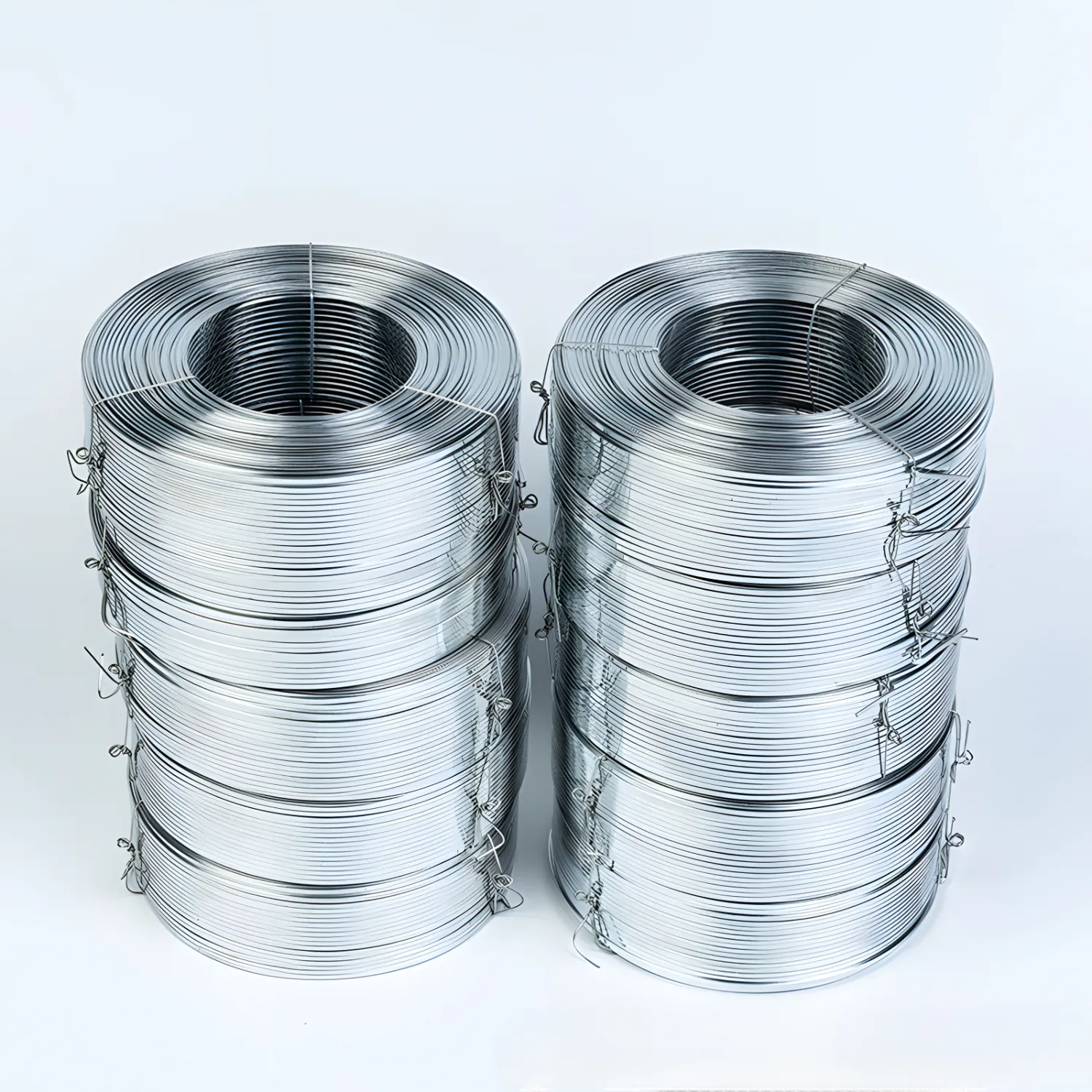

معرض المنتجات
Packaging, coil, and looped wire details of our galvanized baling wire ties.
الأسئلة الشائعة
Common technical and ordering questions about quick-lock galvanized baling wire.
كل قطعة يتم تحسينها دقةً في المصنع بلفات مسبقة الصنع في أطرافها. عند إدخال نهاية الحلقة في الحلقة وإثارتها، يخلق الاحتكاك والهندسة قفلًا غير قابلًا للانفصام شكل 8 يدويًا، دون الحاجة إلى مفكات تقويم أو أغطية معدنية مضغوطة.
Standard vertical balers and cardboard bales typically use 2.7 mm to 3.0 mm (11–12 gauge) wire. Heavy-duty horizontal balers and dense expanding materials like PET bottles or synthetic textiles usually require 3.2 mm to 3.8 mm (10 gauge) wire to withstand higher expansion forces.
Galvanized wire is recommended whenever bales are stored outdoors, shipped overseas, or kept in humid conditions, as zinc prevents rust staining and wire corrosion failure. For fast-turnaround dry indoor storage, black annealed wire is also available as an economical alternative.
Yes. While our most common stock lengths are 3.2 m, 4.0 m, 4.5 m, and 5.4 m, we manufacture custom lengths from 2.0 m up to 6.5 m with tailored loop diameters to match any baler model chamber dimensions.
Wires are counted and securely strapped in bundles of 100 or 125 pieces, wrapped in heavy-duty moisture-proof poly woven bags, and loaded onto export pallets or crates to ensure straight, undamaged delivery ready for immediate use.
Order Quick-Lock Baling Wire or Request a Quote
Tell us your baler model, material type, target bale dimensions, and estimated monthly volume. Our team will recommend the optimal wire gauge, length, and bundle pricing.
