Compact Plastic Granulator · Sprue & Runner Crusher for In-House
Regrind
آلة الكسارة الصغيرة لتحويل البلاستيك
A compact plastic crusher and in-house regrind machine built for
runners, sprues, reject parts, trim, and small rigid plastic scrap generated at injection molding,
blow molding, and extrusion lines. Delivers screen-controlled regrind output (reference: 50–150
kg/h)
with enclosed, low-noise operation and flexible voltage configuration — a practical, low-investment
path to closed-loop scrap recovery on the shop floor.
لماذا يعمل هذا المضارب الصغير للإعادة التدوير البلاستيكية الداخلية
This machine is aimed at plants that need fast scrap recovery,
controlled particle size, and a footprint that fits beside molding or extrusion equipment instead of
inside a full central crushing room.
دمج حجم مناسب للتركيب على الأرضية الصناعية
The crusher is sized for in-plant use, making it easier to place beside injection molding, blow
molding, or extrusion machines where scrap is generated continuously.
نظام تحكم مغلق في الضوضاء
The enclosed body helps reduce operating noise and keeps material splash better contained around
the cutting chamber.

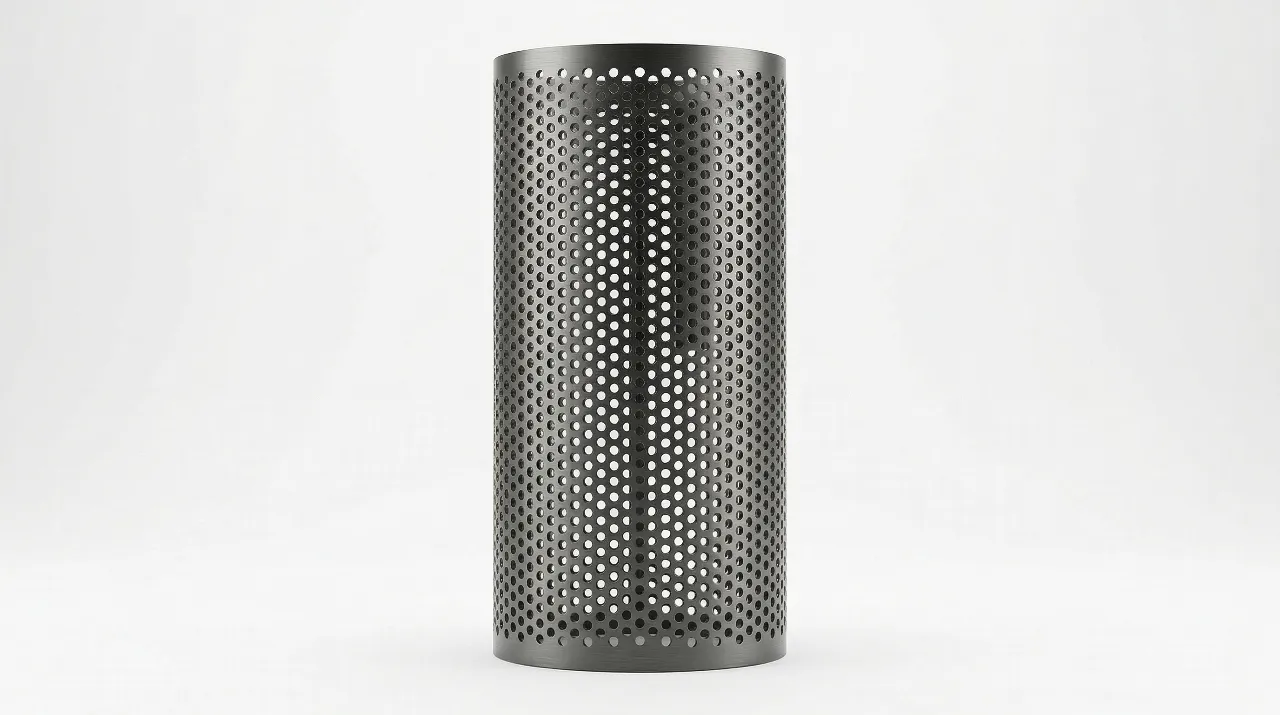

حجم إعادة تدوير بمراقبة الشاشة
Interchangeable screens let the plant match particle size to blending, conveying, feeding, or
direct in-house reuse requirements.
مجموعة سكاك SKD-11 للخدمة الصناعية الروتينية
The reference configuration uses SKD-11 knives, helping the machine maintain stable cutting
performance on rigid sprues, runners, and reject parts over longer operating cycles.
تكوين تيار متردد مرن ومراقبة الشاشة
Voltage, frequency, phase, and screen size can be adjusted to fit different plant standards,
resin types, and reuse targets instead of forcing a one-spec machine into every workshop.
دعم إعادة التدوير الدائري
By reducing scrap immediately into reusable regrind, the machine helps plants cut disposal cost
and return more plastic to internal production.
مواد نموذجية واستخدامات المصنع
This compact crusher is best matched to in-house recovery of rigid
plastic scrap that does not require the volume reduction or throughput of a larger central crushing
system.
ملحقات الطباعة بالحقن والمسدسات
A common fit for molding runners, sprues, startup scrap, and
short-shot parts that need immediate recycling beside the press.
قطع مرفوضة صلبة
Suitable for small molded housings, covers, thick-wall rejects,
and similar rigid plastic components.
قطع وحدود التفجير
Useful for profile offcuts, sheet trim, and startup scrap when
the line needs quick size reduction and re-feed.
قطع التفجير بالتفجير
A practical option for smaller bottle and hollow-part trimming
waste where a large wet bottle crusher would be excessive.
محطات إعادة التدوير على مستوى الخلية
Works well in decentralized recycling cells where each workshop
or line wants its own compact scrap-reduction machine.
دوائر إعادة تدوير داخلية
Helps operators recover regrind for blending, conveying, or
transfer to a larger downstream recycling route.
كيف يعمل المضارب الصغير
The workflow is simple: feed, crush, screen, and collect. The value
comes from stable regrind size and easy integration into daily plant scrap handling.
Feed the Scrap
Runners, reject parts, or trim enter the hopper directly
from the molding or extrusion process.
Shear with Rotor and Fixed Knives
The rotor works against the fixed knife set to reduce the
incoming plastic into smaller particles suitable for screening.
Control Output with the Screen
Only particles that meet the target aperture pass through,
giving the plant more consistent regrind size.
Collect Regrind for Reuse
Finished regrind can be collected for blending, conveying,
storage, or transfer to the next recycling stage.
Small Crusher vs Larger Crusher Routes
The correct machine depends on whether the project is an in-house
scrap loop, a sheet and tray crushing job, or a combined shred-and-granulate workflow.
| عامل القرار | آلة التكسير الصغيرة | كسارة أفقية للصواني البلاستيكية وألواح PVC | آلة تقطيع وتفتيت متكاملة |
|---|---|---|---|
| الأنسب لك | In-plant recovery of small rigid scrap and molded rejects |
Long trays, sheets, and wider rigid offcuts | Bulky materials needing shredding before granulation |
| بصمة القدم | Compact and workshop friendly | Larger machine for wider material form | Larger and more complex combined system |
| شكل المادة | Sprues, runners, reject parts, trim | Flat, wide, and continuous rigid scrap | Thick lumps, bulky pieces, and difficult feedstock |
| التحكم في الإخراج | Screen-controlled regrind for internal reuse |
Screen-controlled flakes from larger scrap pieces | Granulation after a primary shredding stage |
| Throughput Range | ~50–150 kg/h reference (resin & screen dependent) |
إنتاج أعلى لقطع الأوراق المستمرة الأوسع | تقليل الحجم قبل مرحلة الطحن |
| مادة السكين | فولاذ SKD-11 للأسنان الممتدة للحياة الأطول للسنان | D2 أو SKD-11 بناءً على النموذج | فولاذ عالي القوة للعناصر الأساسية للطحن |
| مستوى الضوضاء | جسم مغلق يقلل من الضوضاء أثناء التشغيل | زيادة الضوضاء من تصميم غرفة مفتوحة أوسع | أعلى — نظام ثنائي المراحل مع ضوضاء الطحن |
| متى تختار | When a plant needs a simple, compact scrap grinder beside production |
عندما يتجاوز عرض المواد والهندسة قدرة الطاحونة الصغيرة | عندما يكون المواد الخام كبيرة أو صعبة للغاية للطحن مباشرة باستخدام الطاحونة الصغيرة |
المواصفات الفنية
The following reference configuration is intended for compact in-plant
plastic scrap crushing. Voltage, frequency, screen size, and other details can be adjusted for the
actual project.
| يقود | 7.5 كيلوواط (10 حصان)، 500 دورة في الدقيقة مرجع |
| السكاكين | SKD-11، 12 سكين متحركة و 2 سكين ثابتة |
| غرفة الطحن | 400 x 250 ملم |
| فتحة الشاشة | مرجع 8 ملم، تتوفر أماكن الشبكة الأخرى |
| مزود الطاقة | مرجع 440 فولت / 60 هرتز / ثلاثي الأطوار، قابلة للتعديل |
| الوزن الصافي | 550 كجم |
| حجم الماكينة | 1150 x 820 x 1280 ملم |
| التغليف | غلاف بلاستيكي من الداخل، وعلبة خشبية من الخارج |
Specifications shown are for reference. Final sizing depends on resin
type, part thickness, target regrind size, and plant utility standards.
معرض الآلات

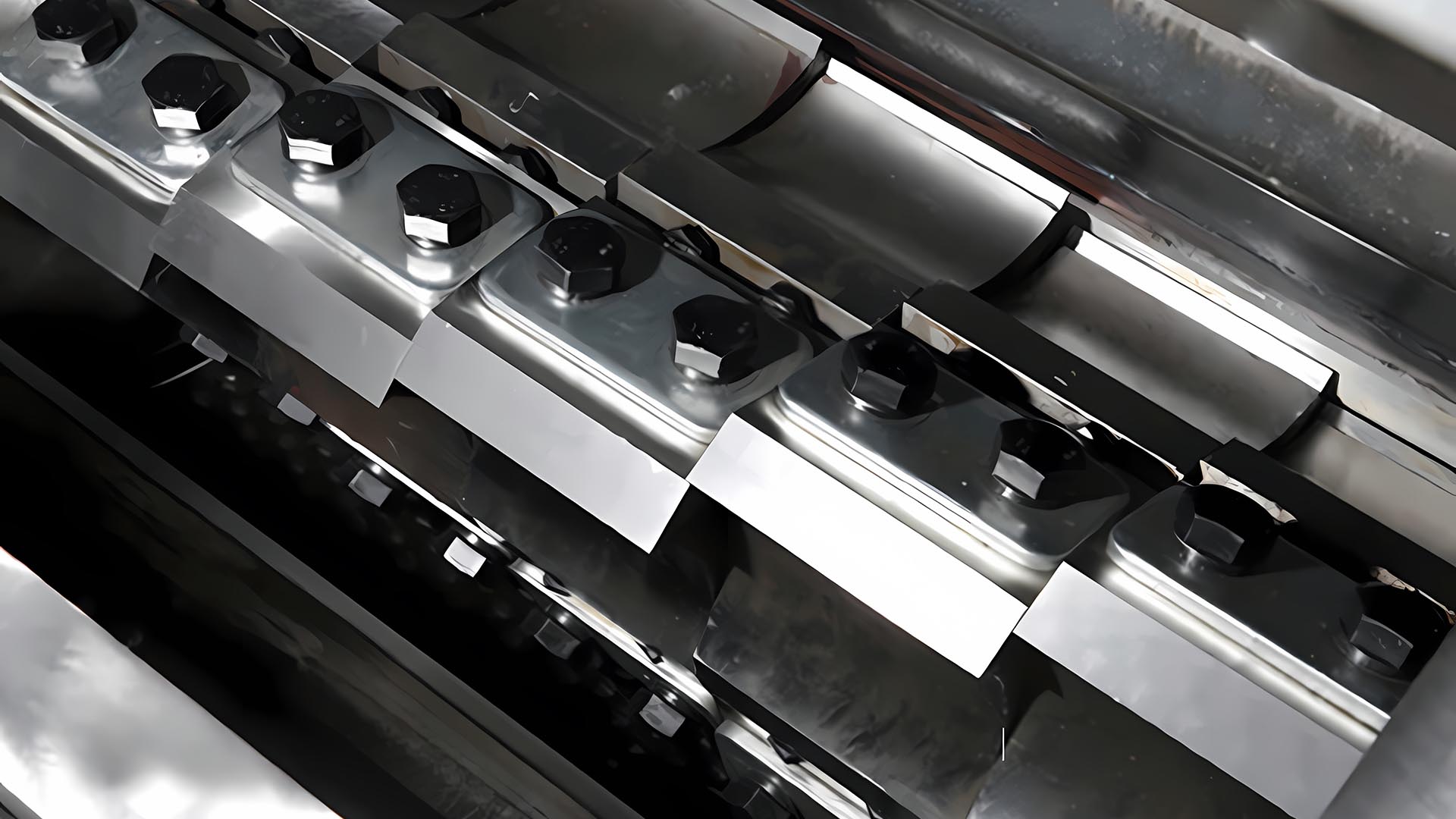

Reference photos of the cutting chamber, machine body, and rigid
plastic feedstock used with this compact crusher platform.
الاسئلة الشائعة
These are the practical questions buyers usually ask before choosing a
compact scrap crusher for in-house plastic recycling.
It is mainly designed for rigid plastic scrap such as runners, sprues, molded rejects, trim,
and small rigid components. Final suitability depends on resin type and part thickness.
Output size is controlled by the screen aperture. You should specify the target regrind size
and how the material will be reused or conveyed downstream.
Please confirm voltage, frequency, phase, available floor space, hopper access, discharge
collection method, and any plant noise-control requirements.
Choose this machine when the job is local in-plant scrap recovery with moderate feed size. If
the material is wider, bulkier, or more difficult to feed, a larger horizontal crusher or
shredder-granulator is usually the better route.
The installation should leave room for routine knife inspection, screen changes, and safe
cleaning around the cutting chamber and discharge area.
The reference throughput is roughly 50–150 kg/h for typical rigid plastic scrap such as
runners, sprues, and small reject parts. The actual rate depends on resin type, part
thickness, screen aperture, and feed consistency. Please share your material details so we
can give a more accurate estimate.
Yes. The compact footprint and direct hopper feeding make it well suited for placement beside
a molding press as a dedicated sprue and runner crusher. The enclosed body also helps manage
noise in a production environment.
Knife service life depends on resin type, feed hardness, and operating hours. SKD-11 knives
offer extended durability for routine industrial duty. Many plants inspect knives
periodically
and rotate or replace them based on edge condition rather than a fixed interval. We can
advise on a maintenance schedule based on your specific material and throughput.
هل تحتاج إلى كرusher صغير يتوافق مع تدفق نفاياتك؟
Share your resin type, part size, target screen aperture, throughput,
and plant power standard. We will recommend the right compact crusher configuration for your
workshop.
