Textile & Carpet Waste Single Shaft Shredder
생산 과정에서 발생하는 폐기물을 파쇄하고 처리하도록 설계된 효율적인 기계 장비입니다. 재료를 절단하고 깎아냄으로써 폐기물의 밀도를 높여 취급, 보관 및 재활용을 용이하게 합니다.
핵심 기능
Robust Main Shaft
Crafted as a solid unit via CNC machining with no weld points, enhancing durability and structural integrity under heavy loads.
고성능 리듀서
Equipped with an H-series reducer, operating at a reduced speed with higher torque for improved cutting efficiency and stability.
내구성 있는 커팅 블레이드
Blades are made from heat-treated, high-strength D2 alloy steel, effective for tough plastics, textiles, and light metals.
직접 구동 시스템
The reducer and main shaft are directly connected to minimize energy loss, with built-in shock absorbers to prolong machine life.
고급 자동화
A PLC-controlled system with multiple safety features: overload protection, automatic reverse, and forward operation.
유압식 공급 시스템
Features a hydraulic system to power the material feed cart, ensuring smooth, steady feeding with consistent pressure.
기술 사양
분쇄기의 사양은 중간 규모의 응용 분야에 적합하며 일관되고 안정적인 성능을 보장합니다.
치수 및 용량
- Effective Rolling Knife Diameter: 300 – 420 mm
- 파쇄실: 600 mm – 1450 mm
- 생산량: 300–1500 kg/h

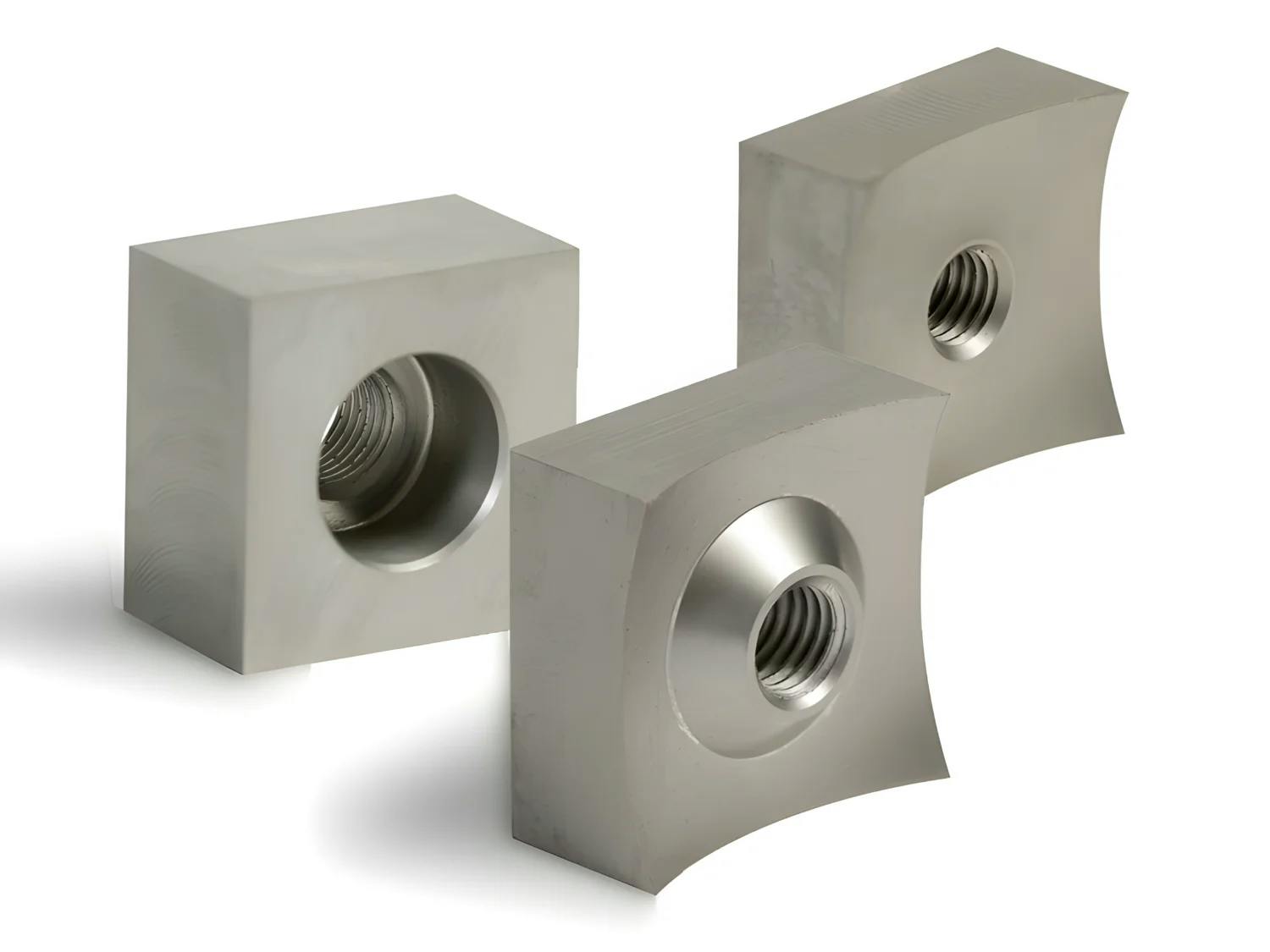

블레이드 사양
- Size (mm): 40×40, 50×50, 60×60
- 재료: SKD-11, H13
- Fixed Blades: 4
- Rotating Blades: 30 – 68
Drive & Control System
- 모터 출력: 30 – 90 kW
- Reducer Output Speed: 72 RPM
- Connection Type: Direct coupling
- 메인 샤프트: Solid, 45-grade steel
제어 구성 요소
- PLC System: Delta
- 전자제품: Siemens contactors
- Buttons: Schneider
- Hydraulic Power: 3 – 6 kW
- 냉각: Air cooling
주요 이점
향상된 내구성
The solid shaft design and premium materials provide superior resilience against wear and tear.
향상된 효율성
Processes waste rapidly, helping facilities streamline their recycling operations and reduce costs.
운전자 안전
Automatic overload protection and reverse functions safeguard both the equipment and the operator.
에너지 효율성
The direct-drive connection reduces energy loss, making it cost-efficient to operate over long periods.
응용 프로그램
섬유 산업
효율적인 폐기 및 재활용을 위해 폐직물, 자투리 천, 실을 잘라냅니다.
플라스틱 재활용
필름, 병 및 기타 플라스틱 제품을 파쇄하여 추가 가공합니다.
Industrial Waste
경량 금속 및 기타 혼합 재료를 처리하여 폐기 효율을 높입니다.
왜 이 분쇄기를 선택해야 할까요?
This shredder is engineered to handle tough operational demands with precision. Its combination of robust construction, advanced controls, and thoughtful design makes it an essential tool for industries looking to reduce waste and improve recycling. Investing in this machine enhances productivity and supports sustainable practices.
자주 묻는 질문
이 분쇄기는 어떤 종류의 재료를 처리할 수 있나요?
This shredder is highly versatile and primarily designed for textile and carpet waste. It can also effectively process various other materials, including plastic films, bottles, light metals, and general industrial waste.
How is the shredder maintained?
Maintenance is straightforward. Regular checks include blade sharpness and wear, hydraulic fluid levels, and ensuring the control system is functioning correctly. The durable D2 steel blades are designed for longevity but can be easily rotated or replaced when needed.
Can the output size of the shredded material be controlled?
Yes, the final size of the shredded material is determined by the screen mesh size installed below the cutting chamber. We offer various screen sizes to meet different processing requirements, allowing you to control the output particle size.
What safety features are included?
The machine is equipped with a comprehensive PLC control system that includes automatic overload protection. If the motor is stressed, the system will automatically reverse the shaft to clear the jam and then resume forward operation, ensuring both operator and equipment safety.
폐기물 관리를 최적화할 준비가 되셨나요?
당사의 섬유 폐기물 단일 축 파쇄기는 귀사의 산업 재활용 요구에 이상적인 솔루션입니다. 사양, 가격 및 구현 방식에 대한 자세한 내용은 당사 팀에 문의해 주세요.
견적 요청
