Vertical Plastic Mixing Dryer Systrm
The ultimate 2-in-1 solution for efficiently blending and drying recycled plastics. Maximize throughput and save valuable floor space with a single, reliable machine.
Solicitar cotizaciónWhy Choose the Energycle Vertical Mixing Dryer?
Our machine is engineered for performance, reliability, and a superior return on investment.
High-Efficiency Drying
Advanced hot air circulation system ensures uniform drying, removing moisture effectively to improve final product quality.
Homogeneous Mixing
The vertical screw auger continuously lifts and tumbles materials, guaranteeing a consistent blend of plastics, masterbatches, or additives.
Diseño que ahorra espacio
Combining mixing and drying into one vertical unit significantly reduces the equipment footprint in your facility.
Durable y de bajo mantenimiento
Constructed with high-quality stainless steel in contact parts for longevity and easy cleaning, minimizing downtime.
Simple & Effective Working Principle
Step 1: Loading
Plastic materials (flakes, granules) are fed into the hopper at the base.
Step 2: Mixing & Lifting
The central screw auger lifts the material from the bottom to the top.
Step 3: Drying & Dispersing
Hot air is blown in, while the material cascades down, ensuring full contact and moisture removal.
Paso 4: Descarga

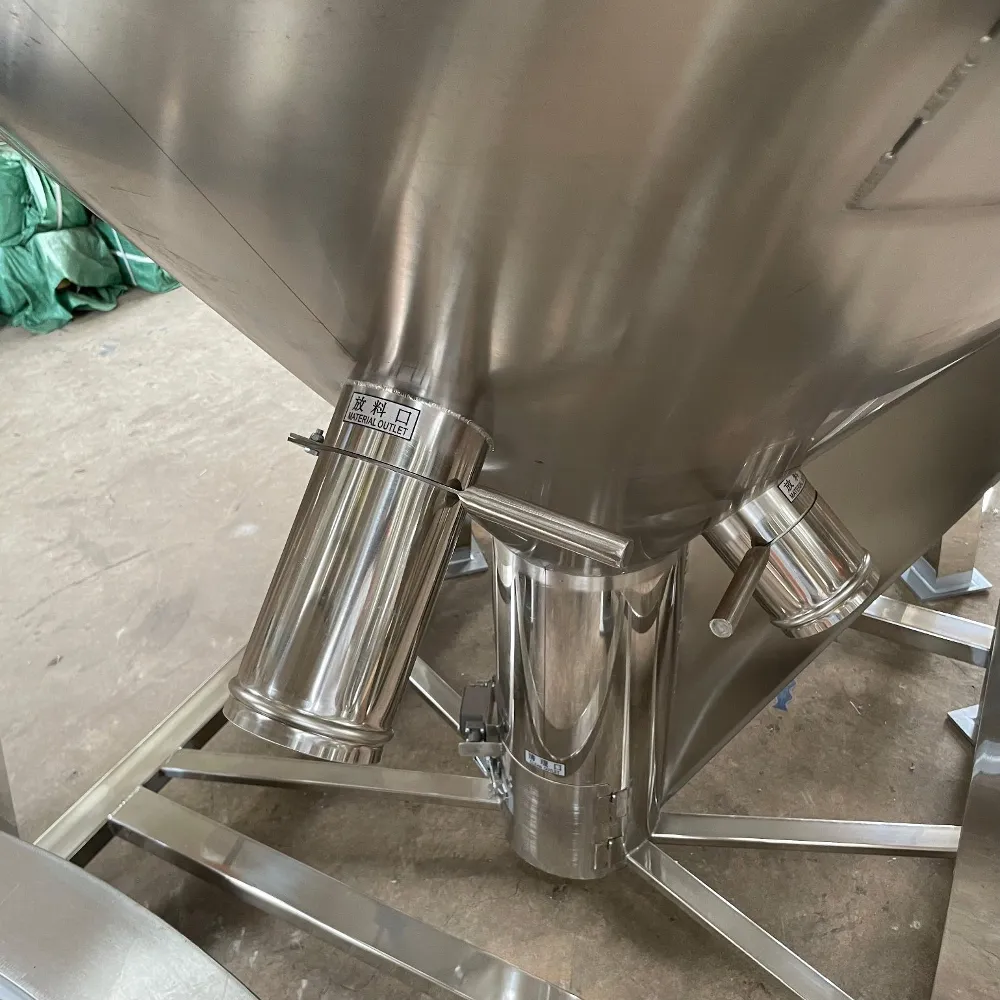

Once dried and mixed, the material is discharged through the side outlet.
Key Features and Technical Specifications
Stainless Steel Auger & Chamber
Contact parts made from SUS304 stainless steel prevent material contamination, resist corrosion, and make cleaning simple and fast.
Intelligent Temperature Control

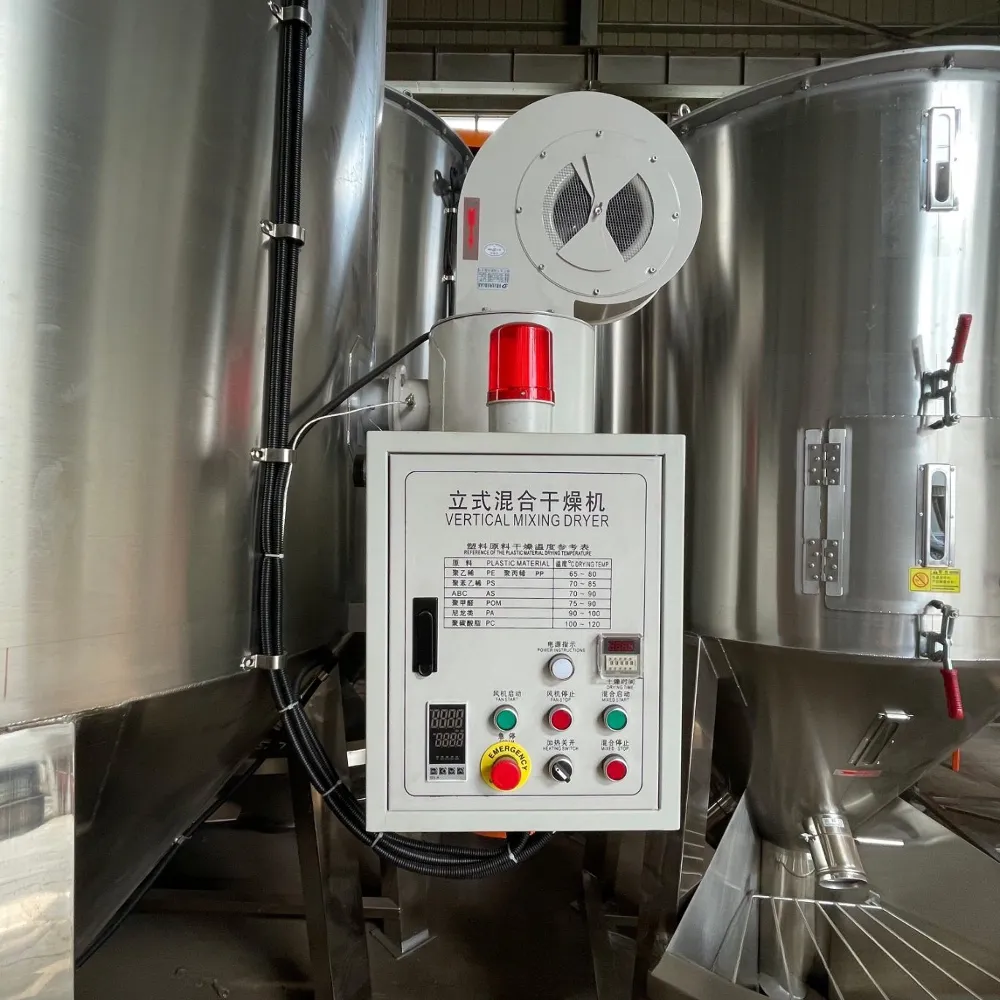

Equipped with a PID temperature controller for precise heat management, preventing overheating and material degradation while saving energy.
Parámetros técnicos
| Modelo | Capacity (kg) | Potencia del motor (kW) | Potencia de calefacción (kW) | Dimensions (L*W*H mm) |
|---|---|---|---|---|
| ERM-VMD-500 | 500 | 4 | 9 | 1500*1500*2800 |
| ERM-VMD-1000 | 1000 | 5.5 | 18 | 1800*1800*3500 |
| ERM-VMD-2000 | 2000 | 7.5 | 24 | 2200*2200*4200 |
*Custom models available upon request. Specifications are subject to change without notice.
Ideal Applications
PET/HDPE/PP Flake Drying
Plastic Granule & Pellet Mixing
Masterbatch and Additive Blending
Pre-processing for Extrusion Lines

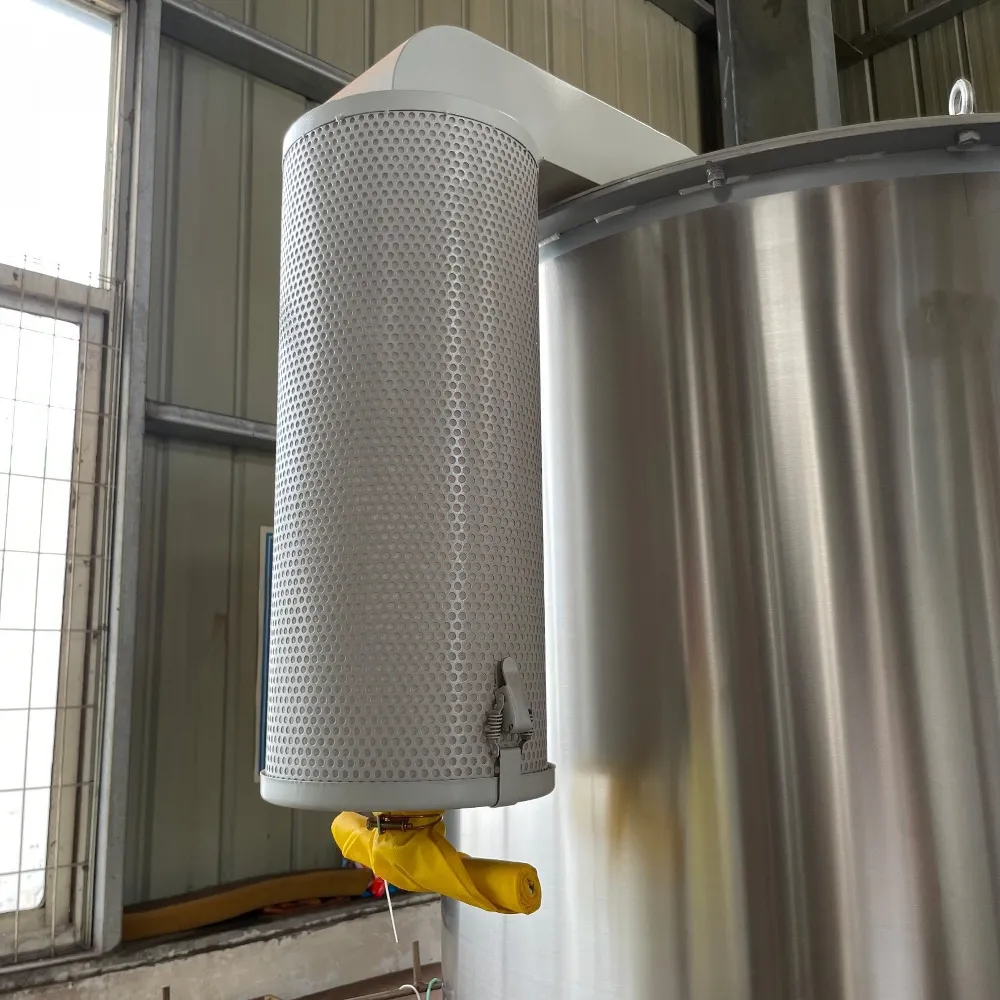

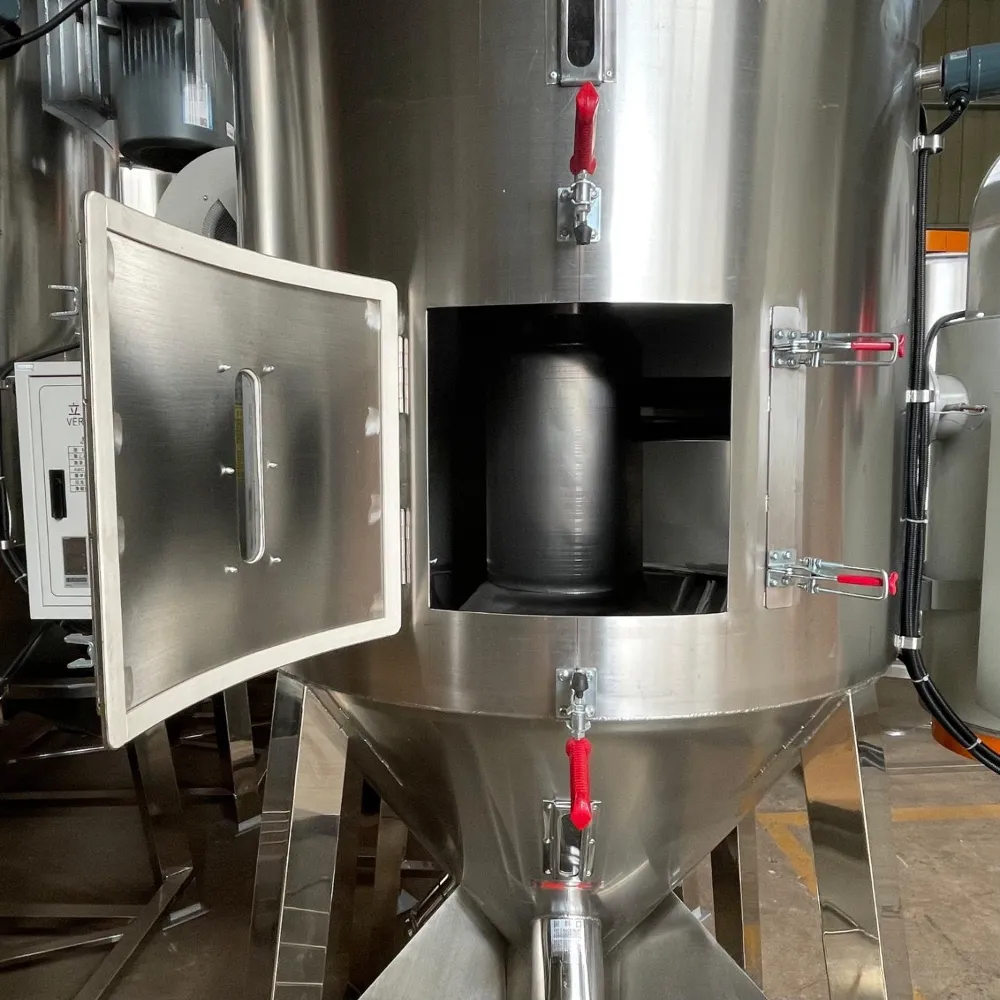

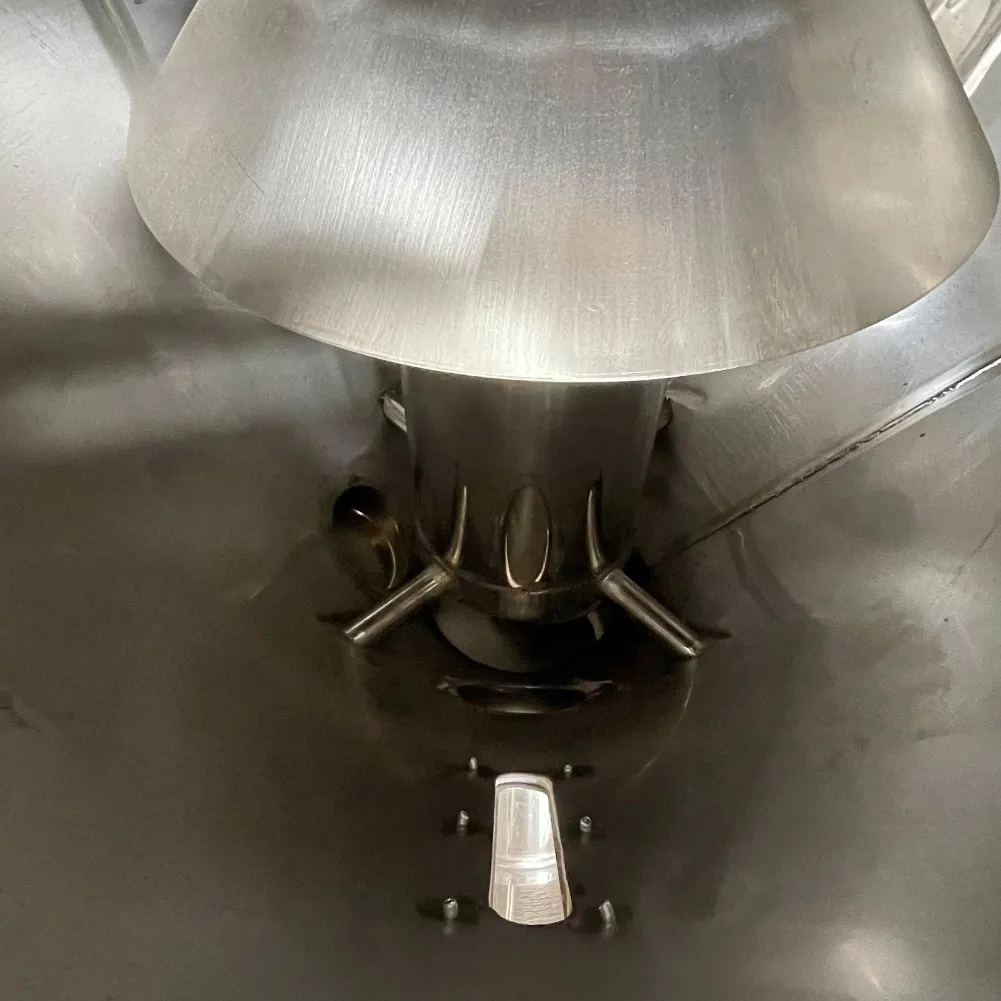

Equipment Showcase
Obtenga una solución personalizada y una cotización
Our engineers are ready to help you configure the perfect machine for your specific needs. Fill out the form below to get started.
Preguntas frecuentes
What types of plastic can this machine handle?
Our Vertical Plastic Mixing Dryer is suitable for a wide range of rigid and semi-rigid plastics, including PET, HDPE, LDPE, PP, PS, and ABS in flake, granule, or pellet form.
Can the drying temperature be adjusted?
Yes, the machine features a PID temperature controller that allows you to set and maintain a precise drying temperature, typically ranging from 80°C to 160°C, depending on the material requirements.
What is the typical lead time for a machine?
Standard models typically have a lead time of 4-6 weeks. For custom configurations, the lead time may vary. Please contact our sales team for an accurate delivery schedule based on your specific order.
