High-Output Plastic Bottle Crusher
The critical first step in plastic recycling, engineered for high-torque performance and maximum uptime. Transform bulky PET and HDPE bottles into clean, uniform flakes with unmatched efficiency.
Request a Custom QuoteEngineered for Profitability and Performance
Maximize Throughput
High-torque motors and V-cut technology process large volumes of bottles quickly, boosting your entire line's output.
Superior Blade Life
Utilizes premium DC53/SKD11 alloy steel, offering twice the toughness and wear resistance of standard blades.
Minimize Downtime
Designed for easy maintenance with external bearings and quickly replaceable wear plates and blades.
Turn a Bulky Problem into a Valuable Product
The Challenge of Whole Bottles
- Whole bottles are bulky, costly to transport, and impossible to clean effectively.
- Light-duty crushers jam, wear out quickly, and produce inconsistent, dusty flakes.
- Frequent downtime for blade changes and maintenance hurts your bottom line.
The High-Performance Crusher Solution
- Efficiently reduce bottle volume, preparing them perfectly for washing and increasing their value.
- Our heavy-duty rotor and hardened blades power through material, producing clean, uniform flakes.
- Robust construction and easy-access design ensure maximum uptime and a longer machine lifespan.
The 4-Step Crushing Process
1. Feeding
Baled or loose plastic bottles are fed into the crushing chamber via a conveyor belt.
2. Crushing
High-speed rotating blades work against stationary blades to shear and chop the bottles into small pieces.
3. Screening
A heavy-duty screen below the rotor allows only flakes of the desired size to pass through.
4. Discharge
Uniformly-sized flakes are discharged, ready for the next stage in the recycling line.
Engineered for Excellence

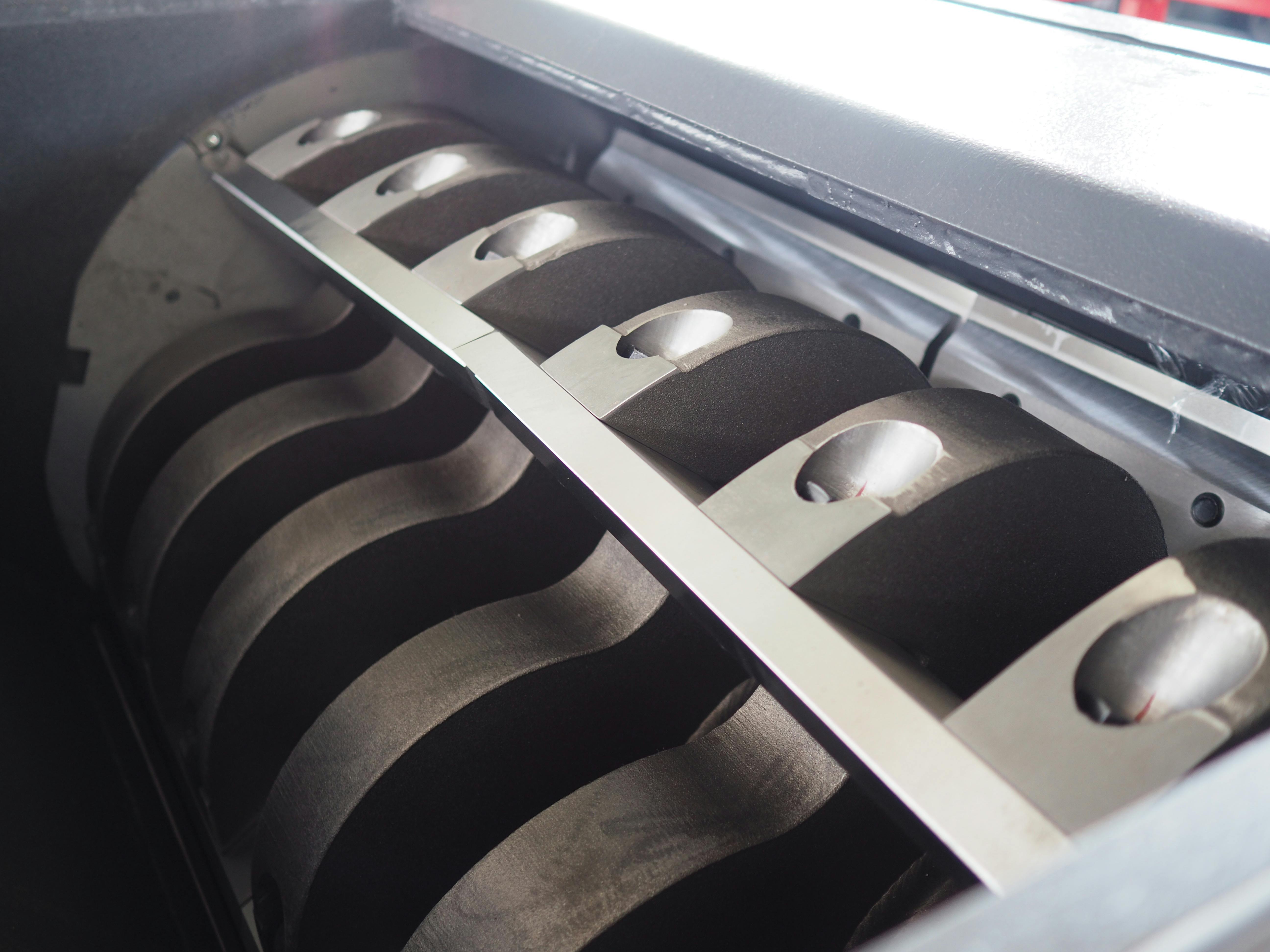

Heavy-Duty Rotor
A dynamically balanced, welded steel rotor ensures stable, vibration-free operation even with the toughest materials.
Precision Knife Blades
DC53 steel blades provide twice the toughness and superior wear resistance compared to standard D2/SKD11 for a clean cut and long life.
Reinforced Crushing Chamber
Welded with ultra-hard 40mm steel plate, the chamber is built to be wear-resistant and durable, handling demanding materials with ease.
Advanced Safety Controls
Equipped with motor overload protection and a safety limit switch that prevents startup unless the cover is 100% closed.
Standard vs. Our Heavy-Duty Crusher
| Feature | Standard Crusher | Our Crusher |
|---|---|---|
| Blade Material | Standard D2 Steel | Premium DC53/SKD11 Alloy |
| Chamber Build | Thin Plate Construction | Reinforced (40mm) Steel |
| Maintenance | Difficult, High Downtime | Easy-Access Design |
| Lifespan | Short-Term | Long-Term Investment |
See the Crusher in Action
From Flakes to High-Value End Products
Polyester Staple Fiber (PSF)
Clean PET flakes are a primary raw material for producing fibers used in textiles, carpets, and stuffing.
PET Strapping
The high tensile strength of recycled PET makes it ideal for manufacturing durable packaging straps.
Bottle-to-Bottle Recycling
With further processing, high-purity flakes can be used to create new, food-grade PET bottles.
Technical Specifications
| Model | Rotor Diameter (mm) | Rotor Width (mm) | Capacity (kg/h) | Motor Power (kW) | Number of Stator Knives |
|---|---|---|---|---|---|
| ERM-600-CRPET | 600 | 700 | ~500 | 22-30 | 5*2 |
| ERM-800-CRPET | 800 | 1000 | 800-1000 | 37-45 | 5*2 or 7*2 |
| ERM-1000-CRPET | 1000 | 1200 | ~1500 | 55-75 | 5*2 or 7*2 |
| ERM-1200-CRPET | 1200 | 1600 | 2000-2500 | 75-90 | 5*4 or 7*4 |
Frequently Asked Questions
What types of plastic can this crusher handle?
What is the final size of the crushed flakes?
Is this a 'wet' or 'dry' crusher?
How long do the blades last and are they easy to change?
What Our Clients Are Saying
We upgraded to this crusher six months ago and the difference is night and day. The throughput is incredible, and we've spent far less time on maintenance. The flake quality is also much more consistent.
Recycling Plant Manager
The heavy-duty construction is immediately obvious. This machine is built like a tank. It powers through baled bottles without any issues and has become the most reliable piece of equipment in our facility.
Operations Supervisor
The service and support were excellent. They helped us choose the right model and blade configuration for our material, and the easy-access design for maintenance has saved our team a lot of time.
Business Owner
Boost Your Recycling Throughput
Contact our experts to configure the perfect plastic bottle crusher for your operation and receive a detailed, no-obligation quote.
