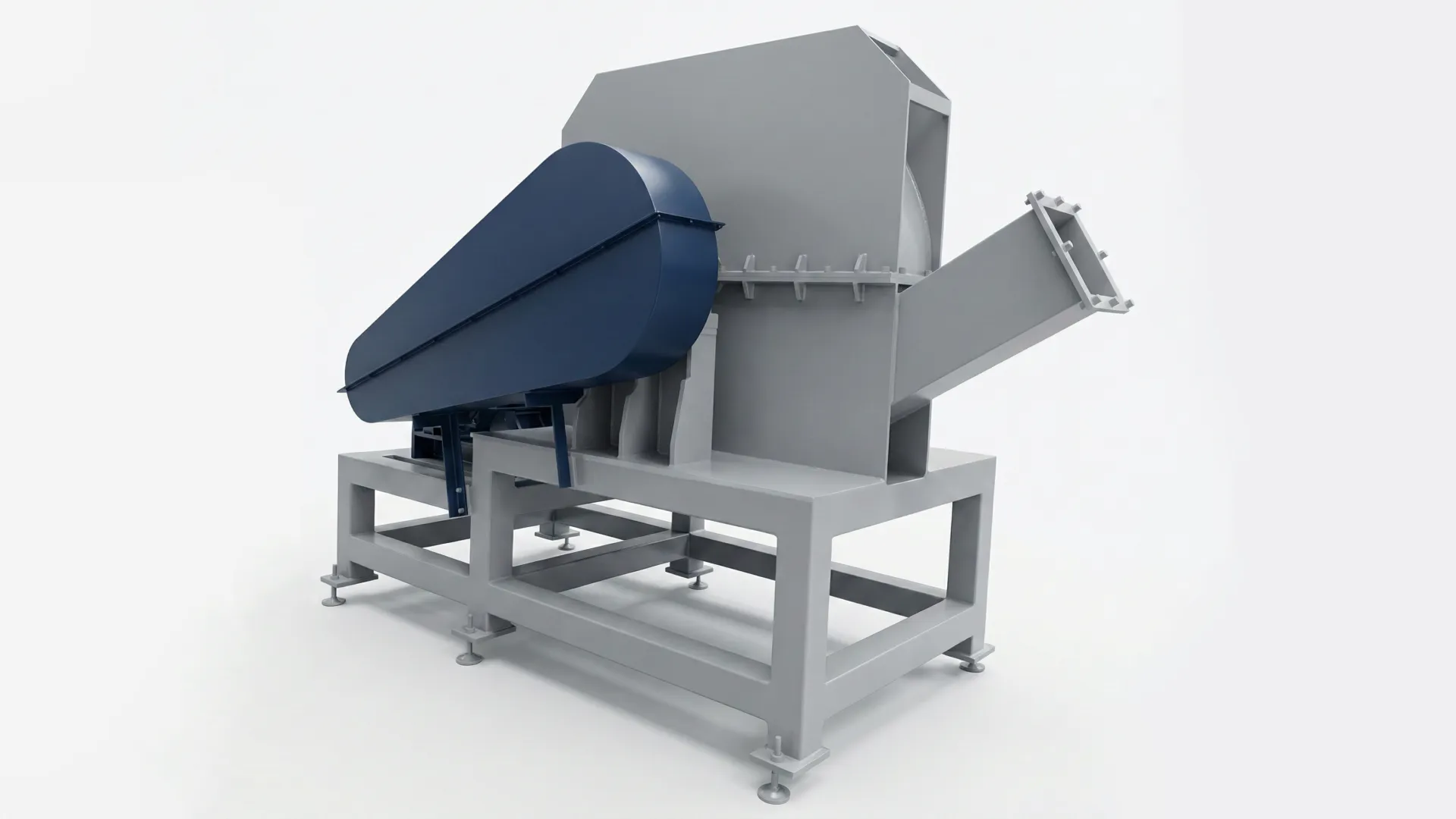

Large Diameter HDPE Pipe Crusher
A heavy-duty horizontal pipe crusher for oversized HDPE, PE, PP, and selected PVC pipe scrap. It accepts long and large-diameter pipes directly, using hydraulic auto-feeding and high-torque cutting to produce uniform chips for washing, granulating, or pelletizing lines.
Built for Oversized Pipe Recycling
Large-diameter pipes are difficult to process with standard granulators because they bridge, roll, and overload the rotor. This crusher uses a wide horizontal hopper, hydraulic pusher, and reinforced cutting chamber to keep pipe feeding stable and predictable.
No Pre-Cutting Needed
Long pipe sections can be loaded directly into the horizontal trough, reducing manual sawing, labor cost, and handling risk before size reduction.
Powerful Tearing Action
Low-speed, high-torque rotor design grips thick pipe walls and tears material against counter knives for stable cutting performance.
Smart Hydraulic Feeding
A PLC-controlled pusher adjusts feeding pressure according to rotor load, helping prevent jams, current spikes, and idle running.
Consistent Chip Output
Screen-controlled discharge keeps particle size consistent, preparing material for secondary granulation, washing, or extrusion.
Safer Pipe Handling
Horizontal feeding keeps operators away from unstable vertical loading positions and reduces direct contact with large, heavy pipes.
Heavy-Duty Construction
Reinforced frame, wear-resistant blades, and hydraulic access points support continuous industrial recycling of thick-walled pipe scrap.
Solving Large Diameter Pipe Recycling Challenges
The system is designed around the real problems of pipe recycling: unstable feeding, high wall thickness, uneven output, and difficult manual preparation.
Common Issues
- Manual cutting of large-diameter pipe is slow, labor intensive, and risky.
- Standard shredders can struggle to grip round pipe and maintain steady feed pressure.
- Unstable feeding often causes jams, uneven chips, and poor downstream washing performance.
Energycle Solution
- Large horizontal hopper accepts whole pipes and long offcuts directly.
- Hydraulic ram feeding keeps pipe material pressed against the rotor at a controlled rate.
- Screen discharge and high-torque cutting deliver uniform chips for a complete recycling line.
Applications and Feed Materials
The crusher is ideal for recyclers, pipe manufacturers, municipal recovery centers, and industrial plants that need to process oversized thermoplastic pipe scrap.
HDPE and PE Pipes
Water pipes, gas pipes, drainage pipes, thick-walled pipe ends, and production offcuts can be reduced before washing and pelletizing.
Core applicationPP Pipe Scrap
Suitable for PP industrial pipe, large fittings, and mixed rigid polyolefin pipe streams that need primary reduction.
Rigid plasticsSelected PVC Pipes
PVC can be processed in selected projects. For high-throughput PVC recycling, a dedicated PVC granulator may be a better fit.
Project dependentComplete Recycling Lines
Common line integration includes conveyors, secondary granulators, friction washing, sink-float separation, drying, and pelletizing equipment.
Turnkey integrationEngineering Design
Key Components for Stable Pipe Crushing
Each major component is selected to solve one bottleneck in large pipe processing: feeding stability, torque demand, chip consistency, and maintenance access.
Hydraulic Ram Feeding
The pusher continuously advances pipe material into the rotor to reduce bridging and idle running.
High-Torque Rotor
Low-speed cutting geometry delivers strong grip and controlled tearing for thick pipe walls.
Adjustable Counter Knives
Stationary knives can be adjusted as blades wear, helping maintain cutting efficiency over time.
Hydraulic Opening Hopper
The feed box can open hydraulically for blade inspection, cleaning, and routine maintenance.
Processing Flow
The crusher acts as the primary size-reduction stage before secondary granulating, washing, drying, or pelletizing.
Whole Pipe Loading
Long or oversized pipes are placed into the horizontal feeding trough by forklift, crane, or conveyor.
Hydraulic Feeding
The pusher advances automatically and adjusts feed rate according to rotor load.
Crushing
High-torque blades tear thick-walled pipe against counter knives to produce coarse, uniform chips.
Downstream Output
Chips discharge through the screen and move to secondary granulation, washing, or pelletizing.
Whole Pipe Loading
Oversized pipe enters the horizontal hopper without manual pre-cutting.
Hydraulic Feeding
The ram pushes pipe material toward the rotor with controlled pressure.
Crushing
The rotor and counter knives tear the pipe into manageable chips.
Downstream Output
Screened chips can continue into washing, granulating, or pelletizing stages.
Technical Specifications
Final configuration depends on pipe diameter, wall thickness, throughput target, local voltage, and downstream process requirements.
| Parameter | Specification |
|---|---|
| Machine Type | Large Diameter HDPE Pipe Crusher |
| Applicable Materials | HDPE, PE, PP, and selected PVC pipe scrap |
| Maximum Pipe Diameter | Up to 1200 mm, customizable by model |
| Feed Method | Horizontal trough with PLC-controlled hydraulic pusher |
| Cutting System | High-torque rotor with hardened alloy blades and counter knives |
| Output Control | Interchangeable screen for controlled chip size |
| Typical Downstream Equipment | Conveyor, granulator, washing line, dryer, and pelletizer |
Swipe horizontally to view the full table on mobile.
Watch the Pipe Crusher in Action
See how the horizontal feeding design and high-torque cutting system process large pipe scrap with controlled, continuous feeding.
Machine Gallery
A closer look at the horizontal pipe crusher layout, heavy-duty feed opening, and industrial frame design.
Large Diameter HDPE Pipe Crusher FAQs
Answers to common questions about pipe diameter, output size, machine selection, and line integration.
Standard large models can process HDPE pipes up to 1200 mm in diameter directly. Larger or special pipe sizes can be reviewed as custom projects.
No pre-cutting is needed for typical pipe lengths that fit the feed trough. The horizontal hopper and hydraulic pusher are designed for direct loading of long pipe sections.
Yes. Final chip size is controlled by the screen opening. The screen can be selected according to the requirements of your downstream granulator, washing line, or pelletizing system.
It can process selected PVC pipe scrap, but high-throughput PVC applications may be better served by a specialized PVC pipe and profile crusher.
Yes. We can match the crusher with conveyors, secondary granulators, washing systems, dryers, and pelletizing machines for a complete HDPE pipe recycling solution.
Need a Pipe Crusher for Your Recycling Line?
Send us your pipe diameter, wall thickness, material type, throughput target, and downstream process. We will recommend a suitable machine configuration.
