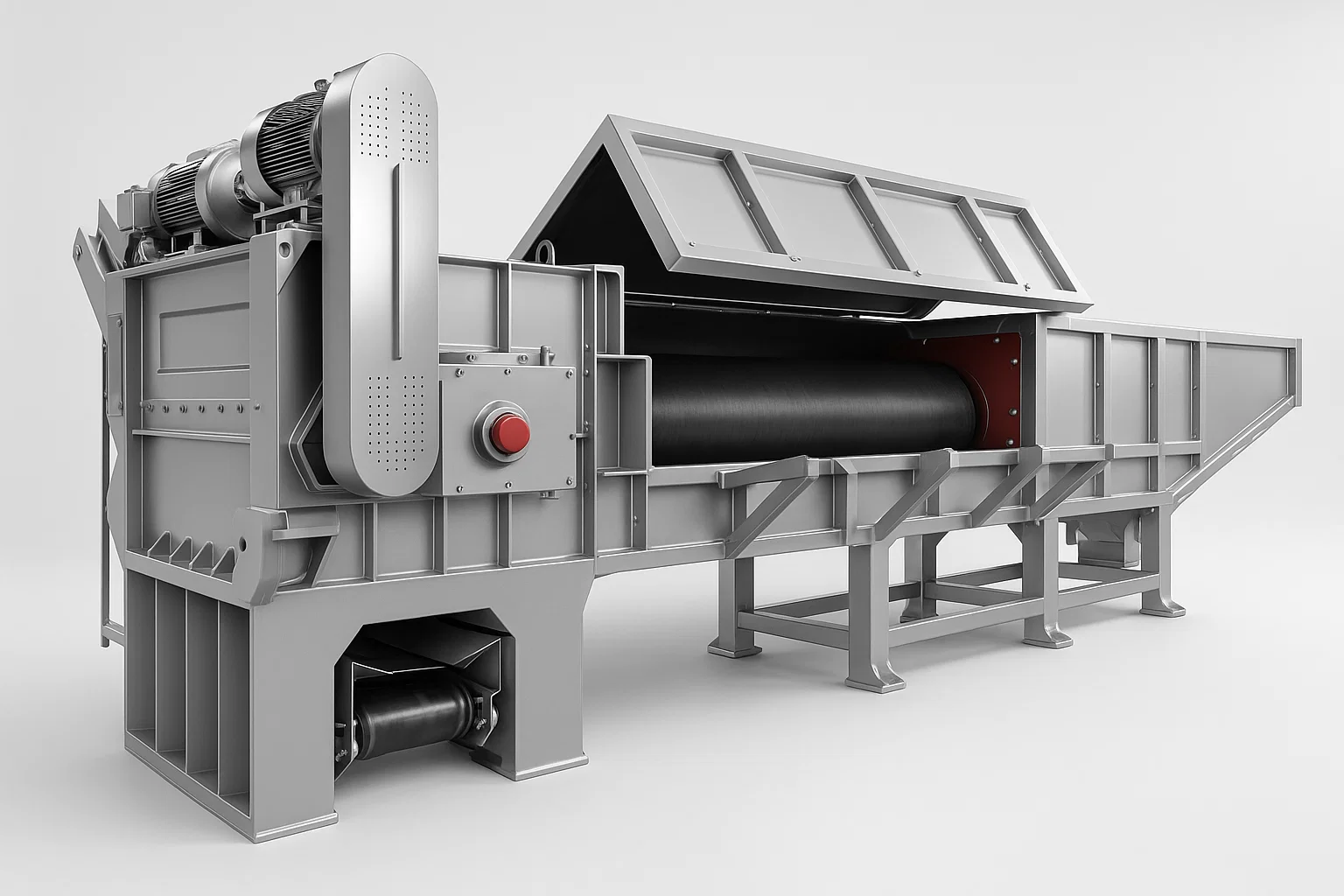

Heavy-Duty Shredder for HDPE Pipes
The ultimate solution for efficiently transforming large-diameter, thick-walled plastic pipes into valuable, consistently-sized material for your recycling operation.
Get a Custom QuoteEngineered for Power and Profitability
Maximize Throughput
Process up to 1500 kg/h of bulky HDPE pipes, significantly boosting your plant's overall output and revenue.
Unmatched Durability
Heavy-duty construction and a shock-absorbing gearbox ensure reliable 24/7 operation, even with the toughest materials.
Smart, Automated Operation
A Siemens PLC system with a hydraulic pusher arm provides intelligent, jam-free shredding with minimal operator intervention.
Turn a Difficult Waste Stream into a Valuable Asset
The Challenge of HDPE Pipe Waste
- Large, bulky pipes are difficult and dangerous to handle and cut manually.
- Standard granulators or shredders easily jam or fail when processing thick-walled material.
- Inconsistent shred size creates problems for downstream washing and pelletizing lines.
The Heavy-Duty Shredder Solution
- Automated horizontal feeding eliminates hazardous manual labor and streamlines the process.
- High-torque rotors and intelligent controls power through the toughest materials without stalling.
- A removable screen guarantees uniform particle size, ensuring optimal performance of your entire line.
The 4-Step Shredding Process
1. Loading
Large HDPE pipes are easily loaded into the wide feeding chamber by forklift or crane.
2. Automatic Feeding
The hydraulic pusher arm advances the pipes into the rotors at a controlled, consistent rate.
3. High-Torque Shredding
Powerful, hardened steel knives on the rotors shear and tear the pipes into smaller pieces.
4. Screened Output
The shredded material passes through a screen, ensuring uniform size before being discharged via conveyor.
Manual Processing vs. Automated Shredding
| Factor | Manual Cutting / Standard Machines | Our HDPE Pipe Shredder |
|---|---|---|
| Worker Safety | Extremely High Risk | Enclosed & Automated |
| Processing Speed | Very Slow, Labor-Intensive | Up to 1500 kg/hr |
| Jamming / Downtime | Frequent and Costly | Minimal with PLC Control |
| Output Consistency | Inconsistent, Irregular | Uniform & Screened |
See the Power in Action
Equipment Gallery
Technical Specifications
| Model | Shaft Diameter (mm) | Capacity (kg/h) | Motor Power (kW) | Chamber Size (mm) | Dimensions (L×W×H) |
|---|---|---|---|---|---|
| RTM-W600 | 350 × 2 | 800 | 30 + 37 | 6200 × 670 | 12500 × 2500 × 1800 |
| RTM-W800 | 450 × 2 | 1000 | 37 + 45 | 6200 × 870 | 12800 × 2900 × 2000 |
| RTM-W1000 | 550 × 2 | 1200 | 45 + 55 | 6200 × 1100 | 13100 × 3260 × 2150 |
| RTM-W1200 | 650 × 2 | 1500 | 55 + 75 | 6200 × 1300 | 13100 × 3460 × 2300 |
Frequently Asked Questions
What is the final size of the shredded material?
How are the blades maintained?
Can this shredder handle contamination?
Do you offer installation and training services?
What Our Clients Are Saying
We were struggling to process large-diameter pipes. This shredder has been a workhorse, handling everything we throw at it without jamming. Our throughput has more than doubled.
Plant Manager
The safety improvements alone are worth the investment. Taking the risk of manual cutting out of our process has been a huge relief. The machine is incredibly reliable and easy to operate.
Operations Director
The consistency of the shredded material is fantastic. Our downstream pelletizing line is running more efficiently than ever before thanks to the uniform output from this shredder.
Recycling Facility Owner
Get Your Custom Pipe Shredding Solution
Contact our experts today for a personalized consultation and a detailed quote to meet your specific recycling needs.
