Vertical Granulator for PVC Profiles & Long Pipes
PVC Pipe Granulator for Pipes & Profiles
This PVC pipe granulator features direct horizontal infeed and hydraulic ram feeding — purpose-built as a vertical granulator for PVC profiles, long pipes, and rigid vinyl extrusions. No pre-cutting needed, delivering uniform regrind for downstream extrusion and compounding lines.
Why Choose This PVC Pipe Granulator?
This vertical granulator for PVC profiles and pipes is specifically designed to handle long, rigid PVC materials efficiently, safely, and with minimal manual intervention.
Direct Horizontal Infeed — No Pre-Cutting
Full-length PVC pipes and profiles are fed directly into the wide horizontal hopper, eliminating the labor, time, and safety risks of manual pre-cutting.
High-Efficiency V-Cut Rotor
Engineered to deliver clean, uniform cuts with lower energy consumption, optimized specifically for rigid PVC and similar hard plastics.
Durable D2 Alloy Blades
High wear resistance for abrasive PVC compounds, maintaining stable output quality and extending service intervals significantly.
Hydraulic Ram Auto-Feeding
PLC-controlled hydraulic pusher automatically adjusts feed rate based on rotor load, preventing jams and ensuring continuous stable operation.
Quick-Access Maintenance Design
Hydraulically opening chamber provides fast access for screen changes and blade servicing, reducing maintenance downtime and keeping production running.
Consistent Regrind Output
Heavy-duty interchangeable screens ensure uniform particle size for clean downstream processing in extrusion, compounding, or pelletizing lines.
How This PVC Pipe Granulator Works
A streamlined 4-step workflow optimized for long PVC pipes and rigid vinyl profiles.
Direct Infeed
Full-length PVC pipes and profile scrap are placed directly into the horizontal hopper by forklift or manually.
Hydraulic Feeding
The hydraulic ram advances automatically, adjusting feed speed based on rotor load to prevent overload and jamming.

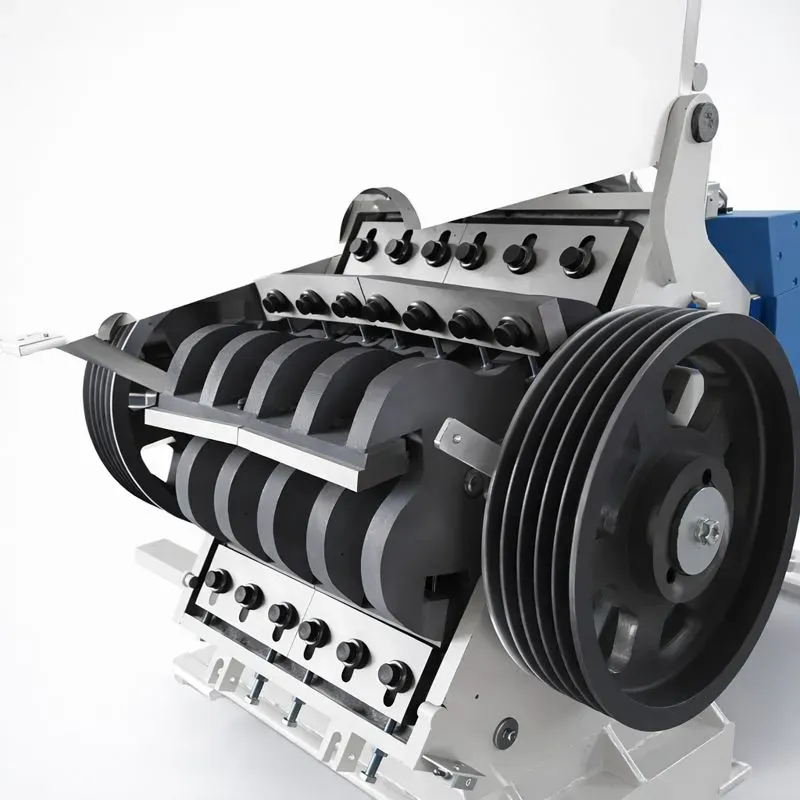

V-Cut Granulation
Material is sheared between the V-cut rotor and stationary D2 alloy knives, producing clean, uniform regrind.
Screened Discharge
Regrind passes through an interchangeable screen and is conveyed to downstream collection or processing.
Applications & Suitable Materials
Designed for rigid PVC and similar thermoplastics where long material form makes conventional top-feed granulators impractical.
PVC Pipes
Water supply, drainage, and conduit pipes of various diameters. Full-length pipes fed directly into the hopper without any pre-cutting — the most common application for this vertical PVC pipe granulator.
Most commonWindow & Door Profiles
Vinyl window frames, door profiles, and multi-chamber architectural extrusions from production scrap.
PVC Siding & Panels
Wall cladding, ceiling panels, and decorative PVC sheets from construction demolition or production offcuts.
Production Scrap & Rejects
In-house startup waste, defective extrusions, and off-spec profiles reground and returned to production immediately.
Our PVC Pipe Granulator vs Standard Top-Feed Granulators
See how our vertical granulator for PVC profiles solves common challenges that standard top-feed granulators cannot.
| Feature | Our Vertical Granulator | Standard Top-Feed Granulators |
|---|---|---|
| Infeed Method | Direct horizontal feed for full-length pipes | Requires manual pre-cutting to fit |
| Feeding Automation | PLC hydraulic ram with load-based control | Gravity or manual push feeding |
| Profile Handling | Designed for awkward shapes and long sections | Jams on irregular profile geometries |
| Maintenance Access | Hydraulic opening for fast blade and screen access | More downtime for servicing |
| Throughput Stability | Continuous and stable with auto-feed | Intermittent due to manual feeding |
Technical Specifications
Available models for PVC pipe and profile granulation. Final throughput depends on material type, wall thickness, and target regrind size.
| Model | Rotor Diameter (mm) | Fixed Blades | Rotating Blades | Capacity (kg/h) | Motor Power (kW) |
|---|---|---|---|---|---|
| VGP500 | 500 | 2 | 5 | 450–500 | 22 |
| VGP730 | 730 | 4 | 10 | 700–800 | 55 |
| VGP830 | 830 | 4 | 14 | 800–900 | 75 |
| VGP900 | 900 | 4 | 14 | 1100–1200 | 110 |
See the Granulator in Action
Watch the machine process long PVC pipes and profiles with hydraulic feeding and V-cut granulation.
Equipment Gallery
What Customers Say
Feedback from PVC recyclers and window profile manufacturers running this granulator in daily production.
Frequently Asked Questions
Common questions about PVC pipe granulation, material compatibility, blade maintenance, and line integration.
This granulator is engineered specifically for long, rigid materials — especially PVC pipes, vinyl window and door profiles, PVC siding, and similar rigid thermoplastic extrusions.
D2 alloy blades are easily accessible through the hydraulic opening chamber. Fixed blades are adjustable to maintain the optimal cutting gap as wear occurs, and rotating blades can be resharpened multiple times before replacement.
Output size is controlled by the interchangeable screen mesh. Standard screens produce regrind suitable for direct re-extrusion or pelletizing. Custom screen sizes are available to match your specific downstream requirements.
While optimized for rigid PVC, this granulator can also process other rigid thermoplastics such as HDPE and PP pipes. For very large diameter HDPE pipes (above 600mm), we recommend our large diameter pipe crusher instead.
The PLC-controlled hydraulic ram monitors rotor load in real time and automatically adjusts the feed speed. When load increases, it slows down; when load decreases, it advances faster. This prevents overload, reduces jams, and maintains stable throughput.
Yes, for clean in-house production scrap. The uniform regrind from this granulator can typically be blended back into extrusion lines directly. For post-consumer PVC waste, additional washing and sorting steps are usually recommended before re-extrusion.
Get a Quote for Your PVC Pipe Granulator
Share your PVC material type, pipe dimensions, and target capacity. We will recommend the right vertical granulator model and configuration for your PVC profile recycling line.
