Waste EVA Foam Recycling Pelletizing Production Line

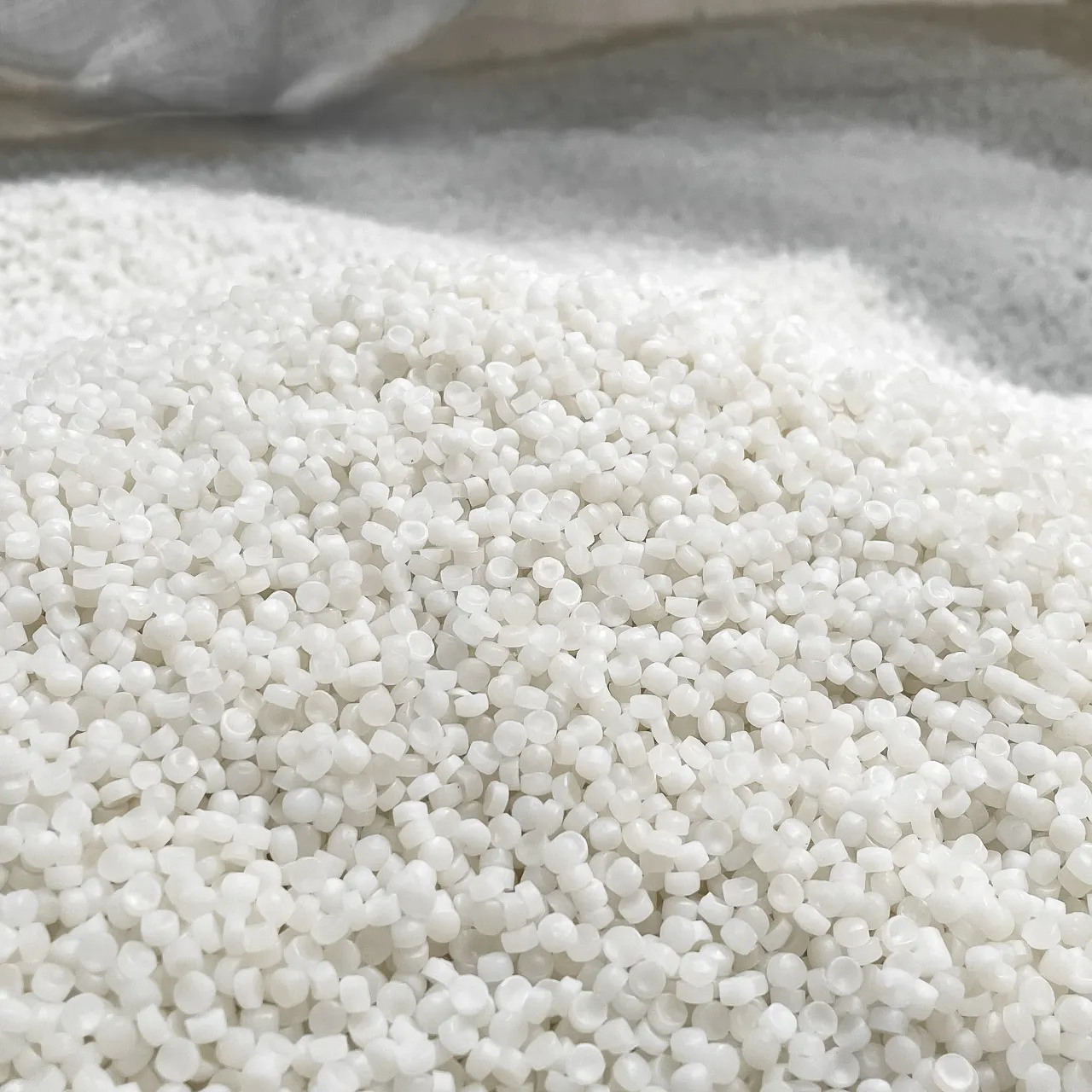

Don’t let lightweight EVA foam waste bottle-neck your recycling profits. Our integrated system transforms foam scrap, shoe soles, and die-cut waste into high-value, high-density pellets.
Request a Quote & Layout DesignSolves Feeding Issues
Eliminates “bridging” in the hopper caused by light, fluffy EVA foam.
High ROI
Turns 100% of your production waste back into raw material for new products.
Energy Efficient
3-in-1 design (Shredding, Compacting, Extrusion) reduces power consumption.
The Process: How It Works
Recycling EVA foam requires a specific engineering approach due to its expansion properties. Here is our proven 3-step workflow.
Primary Size Reduction (For Bulky Waste)
Processing large EVA blocks, thick sheets, or baled agglomerates starts here. Before the material hits the extruder, it must be reduced to manageable sizes to ensure a consistent flow.
Recommended Equipment:
Soft Material Single Shaft Shredder or Single-Shaft Shredder for Extruder Head Waste.
- Anti-Winding Rotor: Specifically designed to prevent flexible EVA strips from wrapping around the shaft.
- Smart Control: Auto-reverse function detects overload and protects the motor.
Compacting & Densifying (The Core Technology)
This is where standard recyclers fail, but our system excels. Lightweight foam is difficult to feed directly into an extruder screw. Our integrated compactor uses friction heat to semi-plasticize the foam, drastically increasing its density.
Recommended Equipment:
Integrated Shredder and Granulator Machine
Extrusion, Degassing & Pelletizing
The densified EVA material enters the extruder. Our specialized screw design ensures gentle melting to preserve the material’s physical properties (like elasticity). Vacuum degassing removes moisture and ink volatiles.
- Filtration: Hydraulic screen changer removes impurities continuously.
- Die-Face Cutting: Water ring pelletizing ensures pellets are cooled immediately, preventing them from sticking together.
Technical Specifications
| Model Series | Screw Diameter (mm) | Motor Power (kW) | Typical Output (kg/h) |
|---|---|---|---|
| EVA-Repro-85 | 85 | 37 – 45 | 180 – 250 |
| EVA-Repro-100 | 100 | 55 – 75 | 300 – 450 |
| EVA-Repro-120 | 120 | 90 – 110 | 500 – 650 |
| EVA-Repro-160 | 160 | 132 – 160 | 800 – 1000 |
* Specifications can be customized based on your material’s specific moisture content and bulk density.
Frequently Asked Questions
Can this machine handle cross-linked EVA foam?
Yes, but it depends on the cross-linking degree. For heavily cross-linked materials, we recommend our specialized Heavy Duty Single Shaft Shredder first to reduce size, followed by testing in our facility to determine the optimal extrusion temperature.
Do I need a separate crusher?
Not necessarily. Our Integrated Shredder and Granulator system combines the crushing, compacting, and pelletizing steps into one machine, saving floor space and energy.
Ready to Efficiently Recycle Your EVA Waste?
Contact us today for a free material test run and a customized machine proposal.
