From Liability to Asset: The Hw49 Automated Washing & Recycling Line
Turn your hazardous waste containers into high-purity recycled feedstock. Engineered to robustly process steel drums, HDPE containers, and IBC totes, the Hw49 system ensures stringent regulatory compliance, maximum operator safety, and exceptional ROI.
Request a Custom QuoteCore Advantages of the Hw49 System
Discover how the Hw49 line elevates throughput, cleaning efficacy, and operational safety in hazardous container processing.
Safety & Compliance Engineered
A fully enclosed, automated process minimizes operator exposure, while optional closed-loop systems simplify wastewater management and ensure environmental compliance.
High-Throughput Automation
From infeed to drying, the automated workflow reduces manual intervention and labor costs, delivering consistent, predictable output shift after shift.
Maximum Resource Recovery
Our multi-stage washing process produces exceptionally clean metal and plastic flakes, maximizing their value for downstream applications and boosting your profitability.
The Hw49 Advantage
See the clear benefits of an integrated Hw49 line versus conventional, piecemeal equipment.
| Feature | Conventional Methods | The Hw49 Integrated Solution |
|---|---|---|
| Operator Safety | High exposure risk from manual handling & open systems | Fully enclosed system with safety interlocks minimizes risk |
| Cleaning Efficacy | Inconsistent results; high consumption of water & detergents | Multi-stage process ensures consistent, high-purity output |
| Output Quality | Residual contamination leads to low-value scrap material | Produces high-value, clean feedstock for profitable reuse |
| Environmental Compliance | Difficult wastewater treatment; high risk of non-compliance | Closed-loop water reclamation options simplify compliance |
How It Works: The Process Flow
A proven, 11-stage sequence—from infeed and size reduction to multi-stage washing and drying—engineered for maximum efficiency.
Technical Features & Specifications
Explore the core components and performance metrics of the Hw49 line. Configurations are tailored to your specific throughput and material requirements.
Heavy-Duty Size Reduction
A powerful primary shredder and secondary granulator efficiently reduce bulky containers to a uniform particle size for optimal washing.
Advanced Washing Modules
Utilizes a sequence of alkaline, high-speed friction, and hot-water floating tanks to systematically dissolve and scrub away contaminants.
Efficient Dewatering System
Multiple dewatering stages use centrifugal force to remove water between cycles, minimizing energy consumption for the final drying stage.
| Capacity (kg/h) | Power (kW) | Footprint (m²) | Staff | Steam (kg/h) | Air (MPa) | Water (m³/h) |
|---|---|---|---|---|---|---|
| 500 | 220 | 400 | 8 | 350 | 0.6-0.8 | 1 |
| 1000 | 500 | 750 | 10 | 500 | 0.6-0.8 | 3 |
| 2000 | 700 | 1000 | 12 | 800 | 0.6-0.8 | 5 |
| 3000 | 900 | 1500 | 12 | 1000 | 0.6-0.8 | 6 |
| 4500 | 1000 | 2200 | 16 | 1300 | 0.6-0.8 | 8 |
| 6000 | 1200 | 2500 | 16 | 1800 | 0.6-0.8 | 10 |
Project Gallery

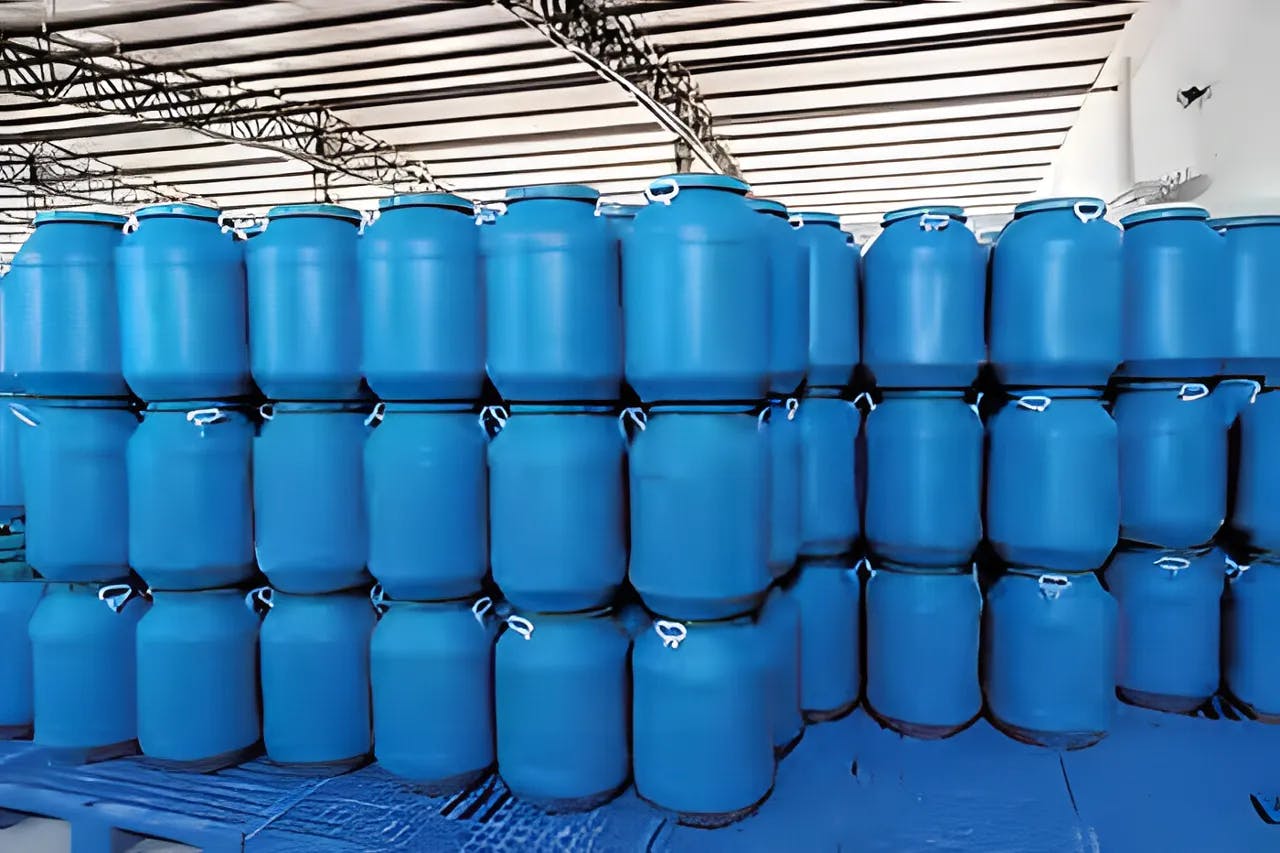

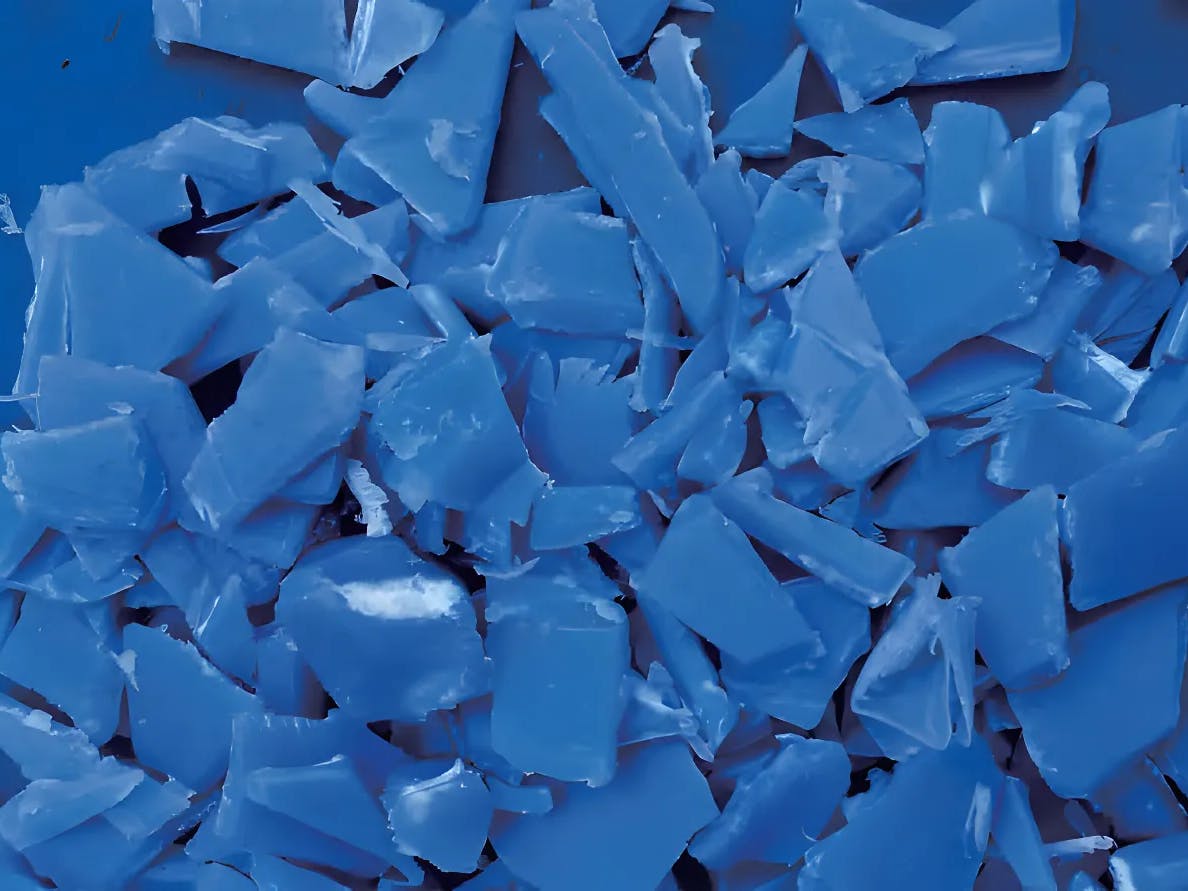

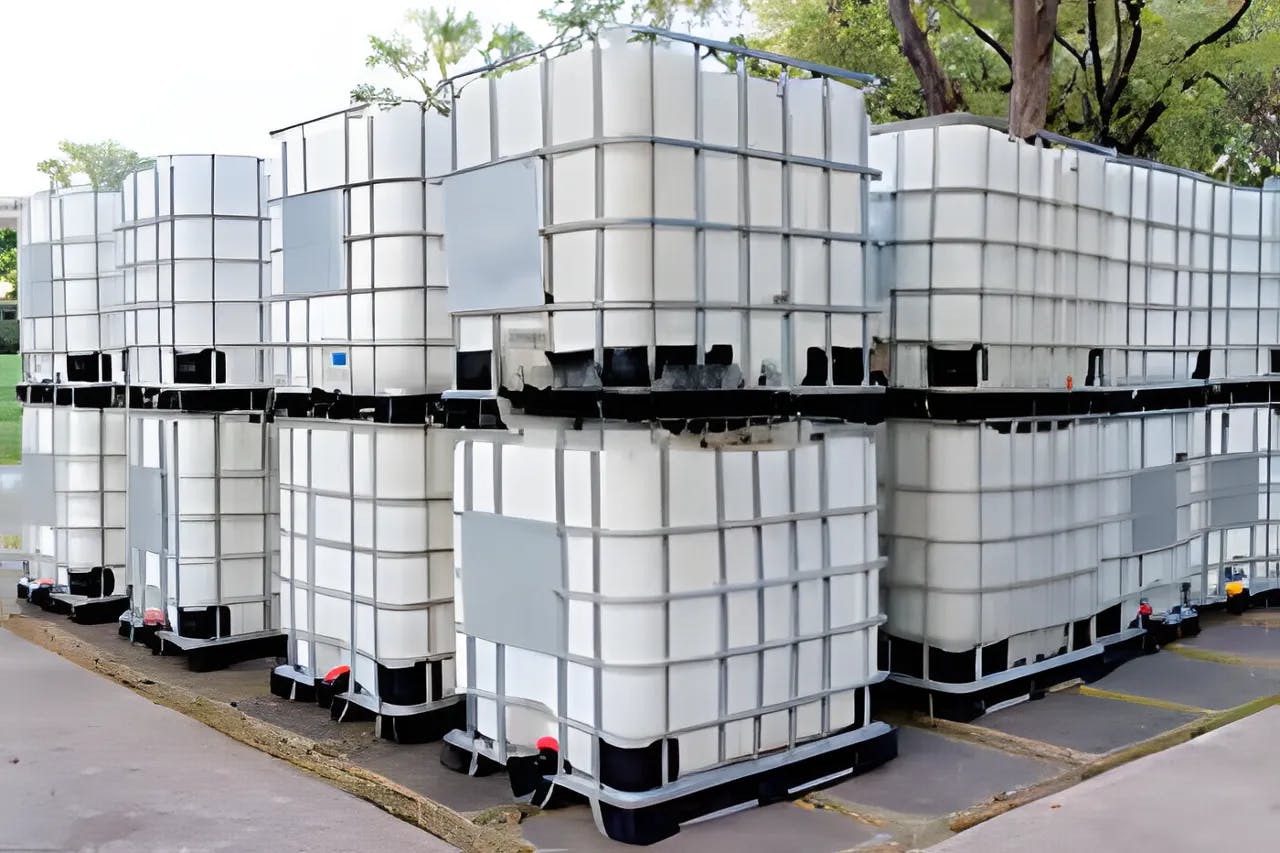

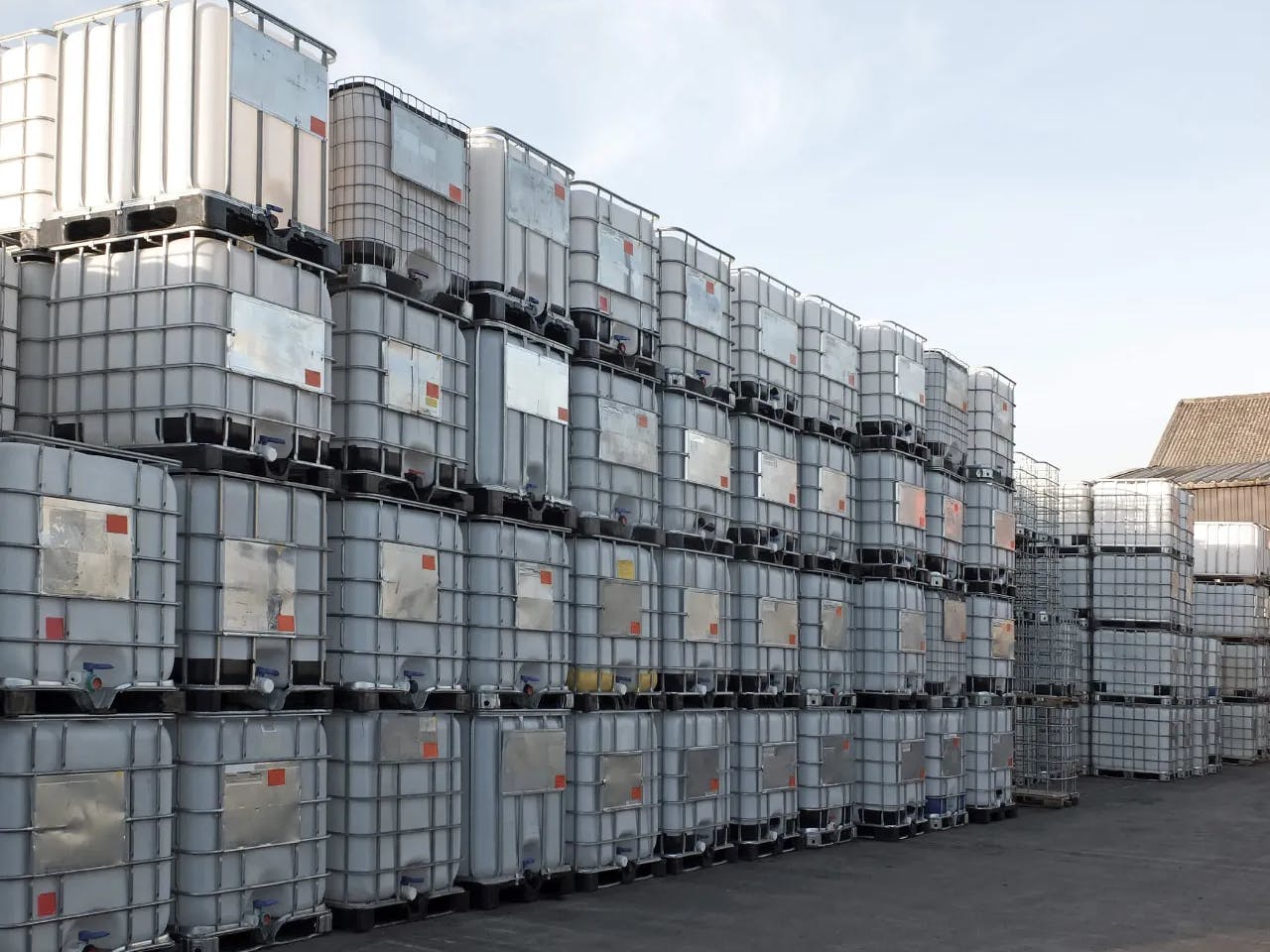

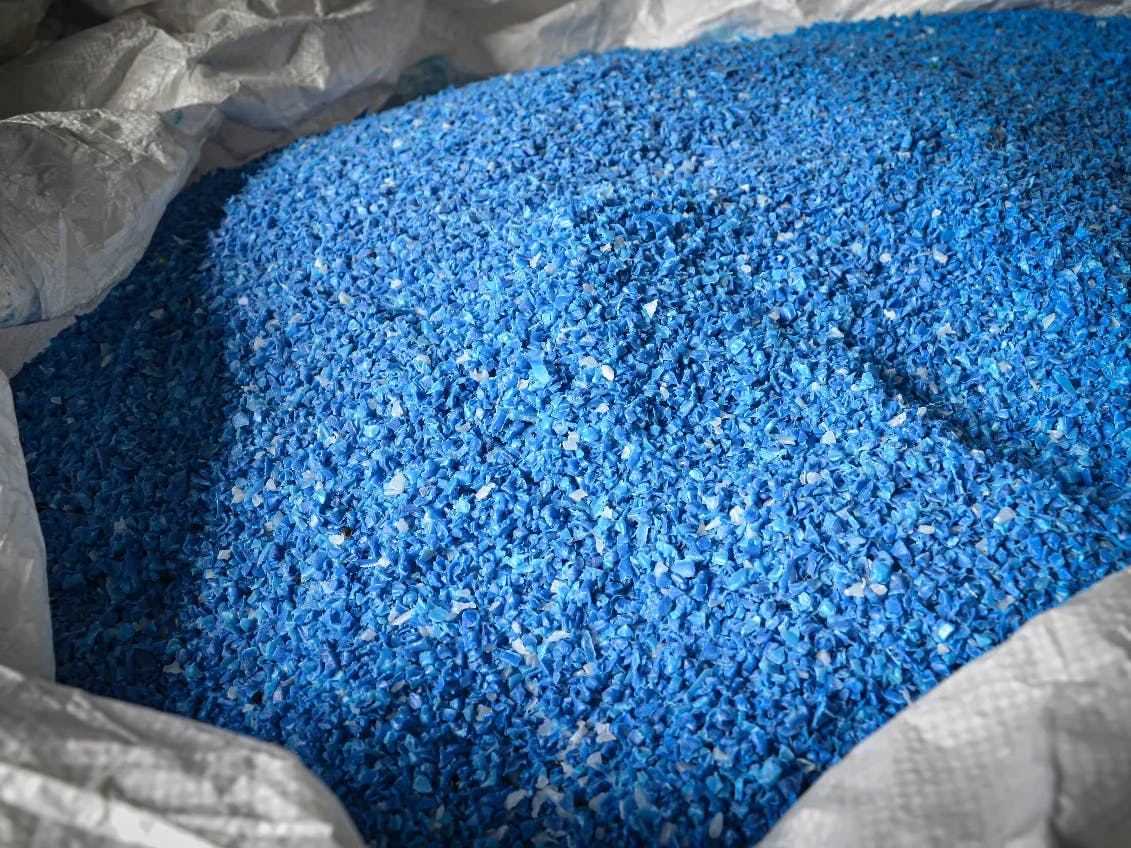

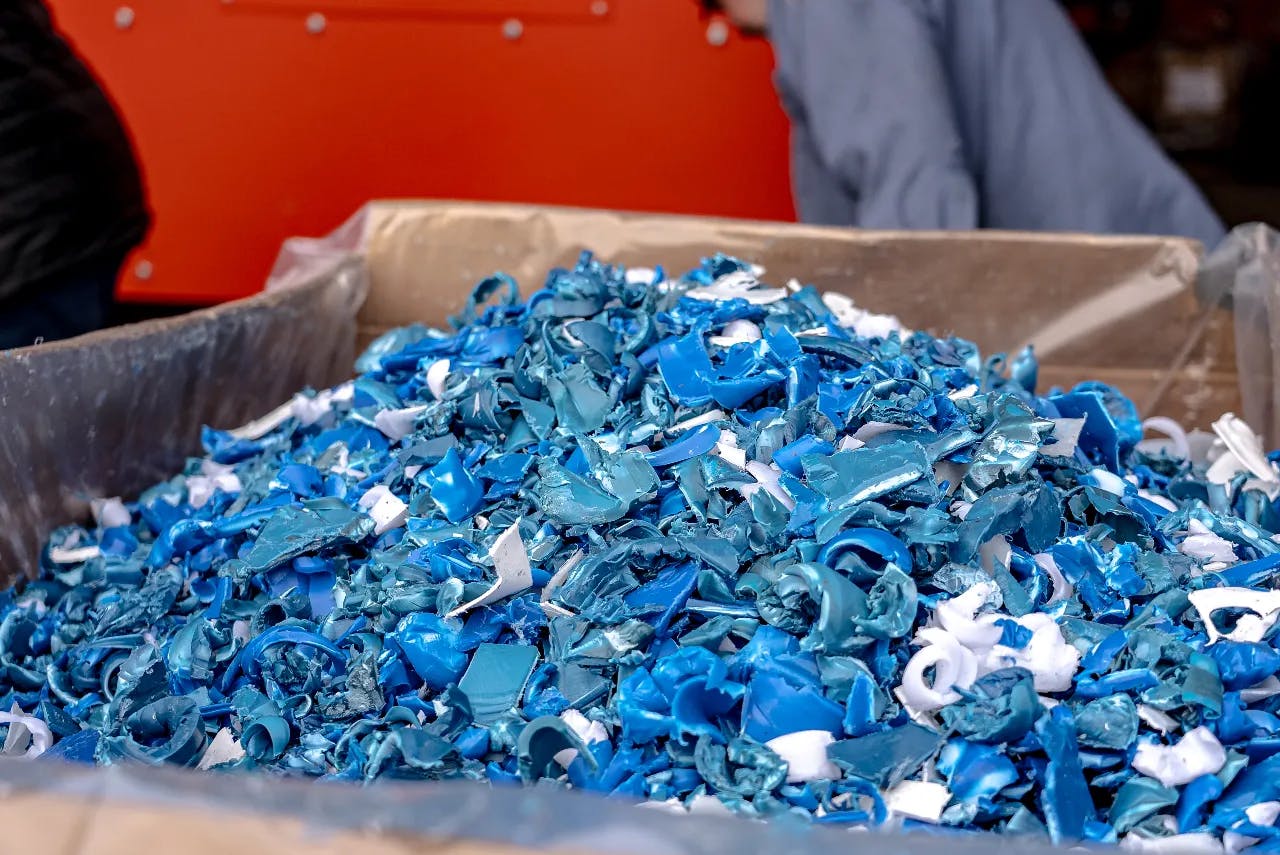

See real examples of drums, buckets, and IBC totes before and after processing on the Hw49 line.
See the Hw49 in Action
Watch the complete washing process, from contaminated container infeed to clean, reusable output.
Request a Custom Quote & System Configuration
Detail your material types, contamination levels, and target throughput. Our engineers will configure the optimal Hw49 solution for your facility and provide a detailed quote.
Frequently Asked Questions

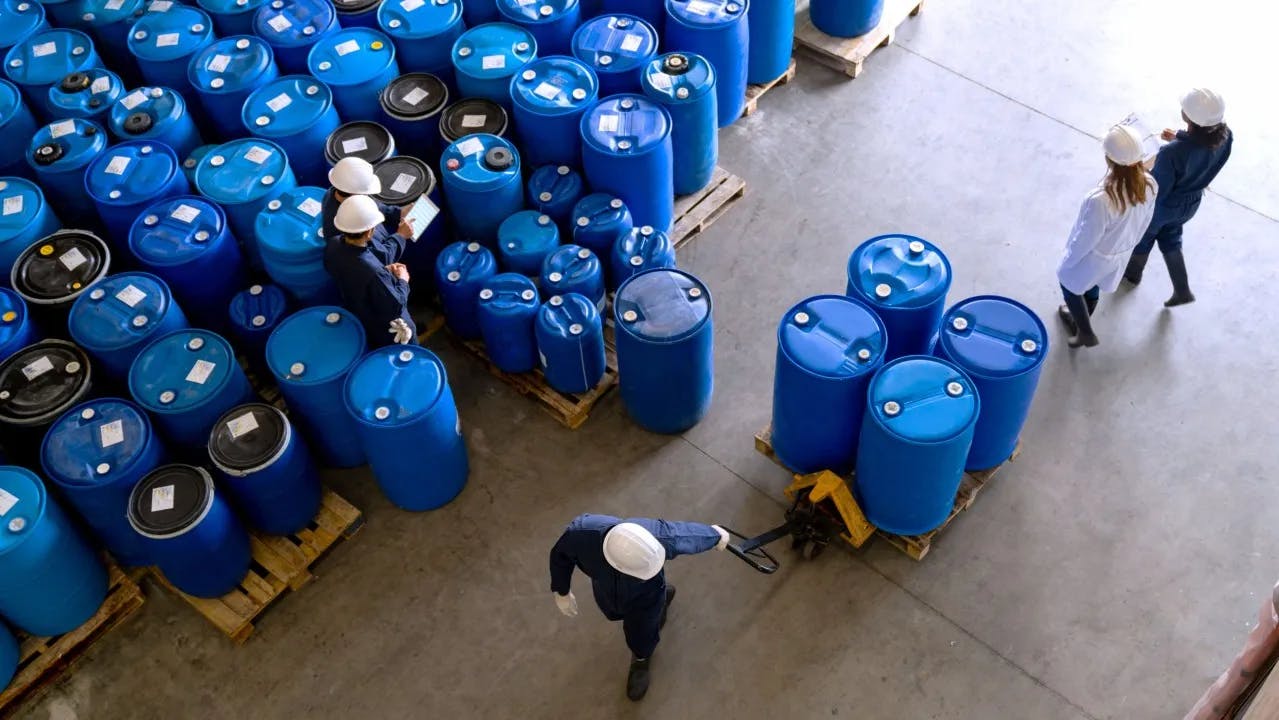

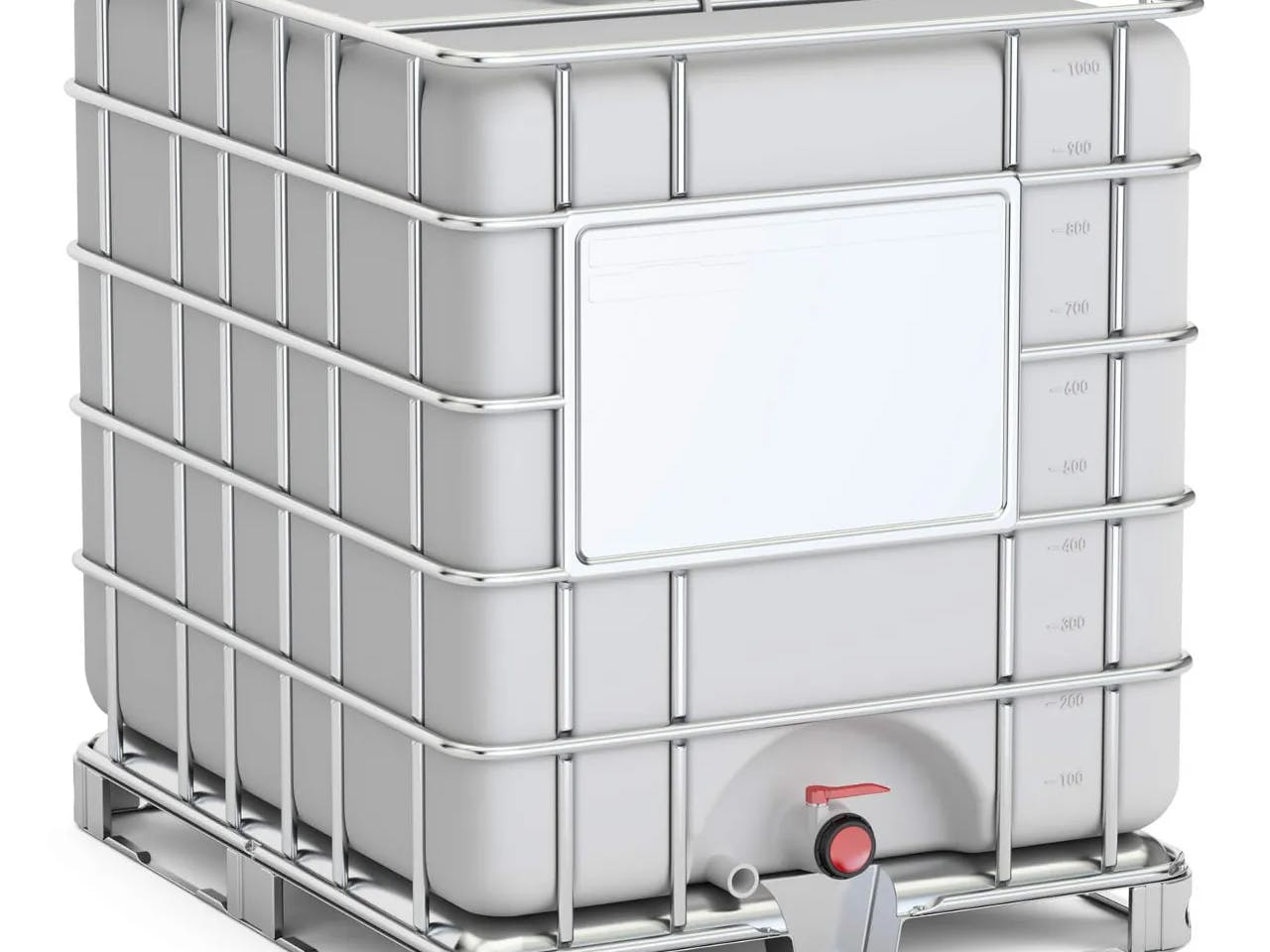

The Hw49 is engineered for versatility. It is designed to process 200L (55-gallon) steel drums, HDPE plastic barrels, and 1000L (275-gallon) IBC totes that previously contained chemicals, oils, paints, and other industrial residues.

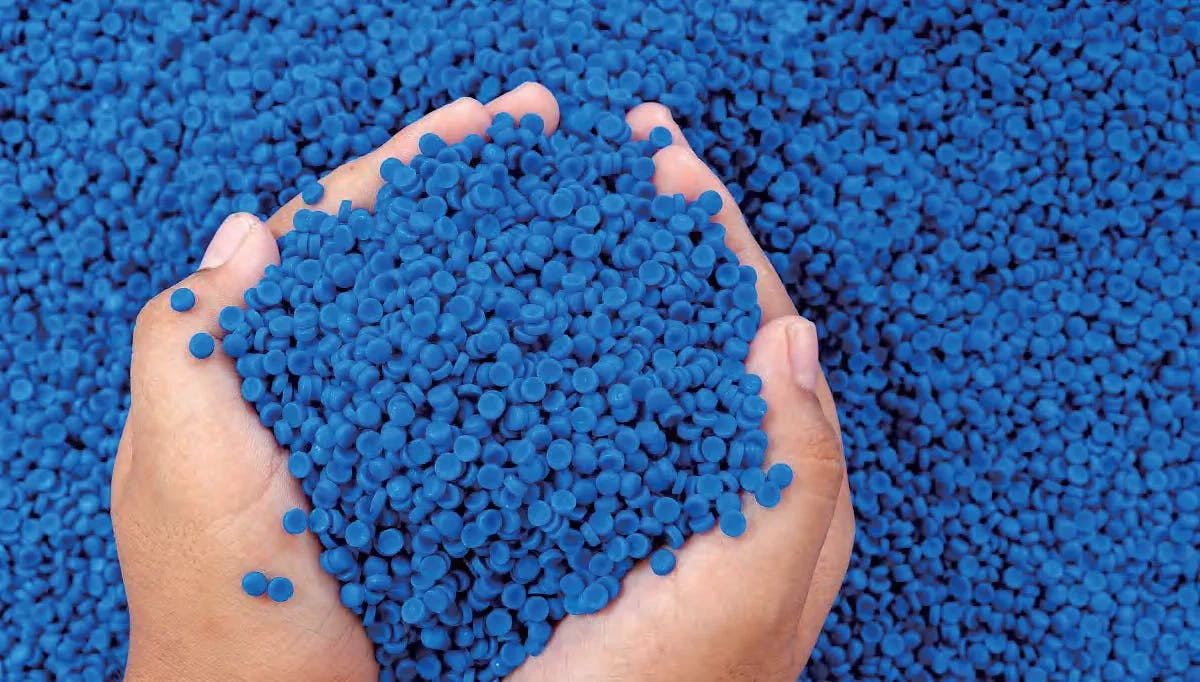

The system produces clean, high-purity plastic flakes or recyclable metal scrap suitable for direct use in downstream applications. Our multi-stage washing process significantly reduces contamination, enabling plastics to be re-pelletized and metals to be re-melted for new products.
The Hw49 can be integrated with optional water reclamation and filtration systems to minimize fresh water consumption. All system discharge must be treated to meet local and federal environmental regulations before release.
We provide comprehensive support including on-site installation supervision, system commissioning, and operator training to ensure your team can run and maintain the Hw49 line safely and efficiently for years to come.
What Our Clients Are Saying
Hear from leaders who have transformed their operations with the Hw49 system.
"The Hw49 line has been a game-changer for our operation. We've doubled our throughput, and the cleanliness of the output material exceeded our expectations. This is a robust, reliable system."
"Safety is our top priority. The fully automated and enclosed design of the Hw49 gave us peace of mind and has significantly reduced operational risk for our team."
"We were skeptical about processing both IBC totes and steel drums on one line, but the versatility is impressive. The modular design allowed us to get a system that perfectly fits our unique needs."
