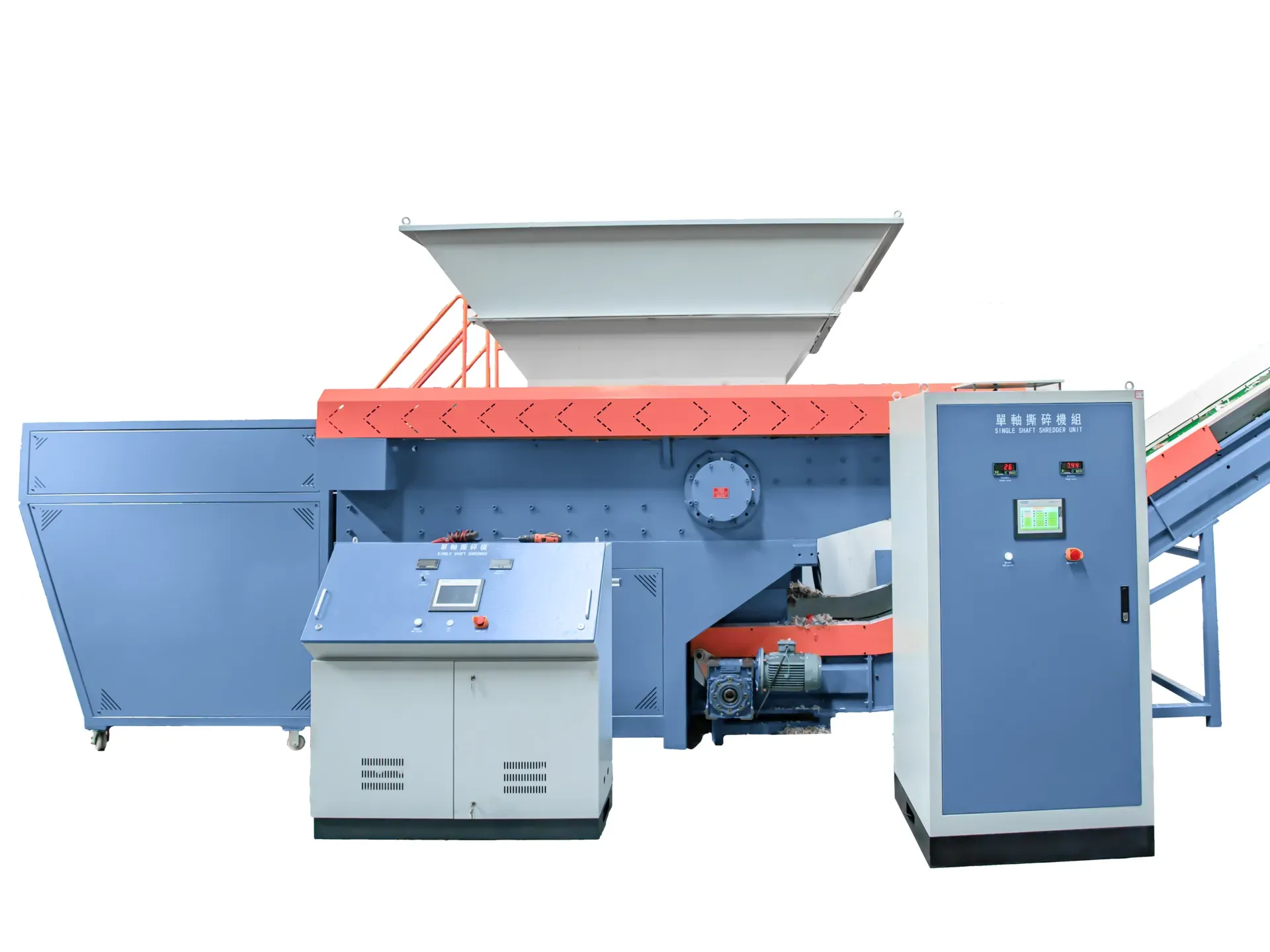

The Engineering Marvel: Single-Shaft Shredder Components

At the heart of modern waste management lies the single-shaft shredder—a precision-engineered machine designed to tackle diverse materials with remarkable efficiency. Let’s explore the sophisticated components that work in harmony to deliver exceptional performance:

• High-Performance Shaft The powerhouse of the system, crafted from premium high-strength steel to withstand intense operational demands. This central component transfers power to the cutting elements while maintaining structural integrity through thousands of operating hours.
• Precision-Engineered Blades Our advanced alloy steel blades combine optimal hardness with exceptional wear resistance. Strategically positioned for maximum cutting efficiency, these blades deliver consistent particle size while minimizing energy consumption.
• Ergonomic Feed Hopper Designed with workflow optimization in mind, our feed hoppers facilitate smooth material entry while prioritizing operator safety. Custom configurations are available to match your specific processing requirements.
• Adaptive Discharge System The intelligently designed discharge outlet ensures continuous material flow while preventing bottlenecks. Adjustable screen sizes allow you to precisely control output particle dimensions for downstream processes.
• Robust Drive System Our integrated power transfer solution combines high-efficiency motors with precision reducers and couplings, delivering reliable performance while optimizing energy usage across varying load conditions.

Sophisticated Operating Principles

The single-shaft shredder operates on a remarkably efficient principle that combines multiple mechanical forces to achieve optimal material reduction:

As materials enter through the ergonomically designed feed hopper, they encounter the rotating shaft equipped with precision-engineered blades. These blades generate powerful shearing forces that fragment the materials while minimizing heat generation and energy consumption. The materials continue processing within the cutting chamber until they reach the desired particle size, at which point they pass through carefully calibrated screens and exit via the discharge outlet.

This sophisticated process ensures consistent output quality while adapting to variations in material properties—truly engineering excellence in action.

Finding Your Perfect Match: Single-Shaft vs. Double-Shaft Technology

Our engineering team can help determine the perfect configuration based on your specific material properties and processing goals.

Performance Specifications: Finding Your Perfect Match

Our comprehensive range of single-shaft shredders offers solutions for operations of all sizes. Review the detailed specifications to identify the model that aligns with your processing requirements:

Modello	ERMDS-600	ERMDS-800	ERMDS-1000	ERMDS-1200
Potenza del motore principale	30kW	45kW	2×37kW	2×45kW
Potenza del motore idraulico	4kW	4kW	5,5 kW	5,5 kW
Materiale del coltello	SKD11	SKD11	SKD11	SKD11
Diametro rotante	Φ400mm	Φ400mm	Φ450mm	Φ500mm
Velocità di rotazione	85 rpm/min	85 rpm/min	80 rpm/min	70 rpm/min
Capacità di elaborazione	400-600 kg/h	600-800 kg/h	800-1200 kg/h	1500-2000 kg/h

Not sure which model is right for your operation? Our technical consultants are available to conduct a detailed assessment of your processing needs and recommend the optimal solution.
