Up to 90:1 Volume Reduction
EPS Foam Melting Machine
Transform bulky EPS foam into dense, valuable ingots with advanced hot-melt densification technology. Slash storage costs by 90%, simplify logistics, and turn polystyrene waste into a profitable reusable resource.
Product Gallery
See our EPS foam melting machines in action — from the feeding hopper to the dense ingot output.
Key Advantages
Efficiently minimize waste volume and create new revenue streams with our advanced hot-melt densification process.
Exceptional 90:1 Densification Ratio
Achieves an outstanding volume reduction of up to 90:1, converting a full truckload of loose EPS foam into a single pallet of dense ingots. This drastically cuts storage space by 90% and slashes transportation costs.
Creates Valuable Resources
Transforms waste foam into dense ingots — a highly sought-after commodity for plastic recycling industries worldwide.
Energy Efficient Operation
Automatic temperature control system ensures efficient melting without wasting energy or overheating materials.
Compact Footprint, High Throughput
Features a compact mechanical design suitable for facilities with limited floor space, yet delivers stable throughput from 40 kg/h to 200 kg/h depending on the model. The integrated crusher-melter design eliminates the need for separate pre-processing equipment.
Environmental Protection & Compliance
Effectively reduces white pollution and minimizes landfill waste. The sealed melting process contains fumes, and our systems support add-on exhaust filtration to meet local environmental regulations and promote a circular economy.
Precise Temperature Control
Maintains ideal melting conditions to prevent burning or degradation, preserving material quality for high-value recycling.
How It Works
From loose waste foam to dense, sellable blocks in four automated steps.
Feeding & Crushing
Waste EPS foam is fed into the hopper, where a dual-shaft crushing system breaks it into smaller, manageable pieces for efficient melting.
Heating & Melting
Crushed foam enters the heated barrel where a rotating screw conveys it through a precise temperature zone, melting it into a viscous liquid.
Extrusion & Forming
The molten polystyrene is continuously extruded through a die head, forming dense, solid ingots or blocks with a uniform shape.
Discharge & Collection

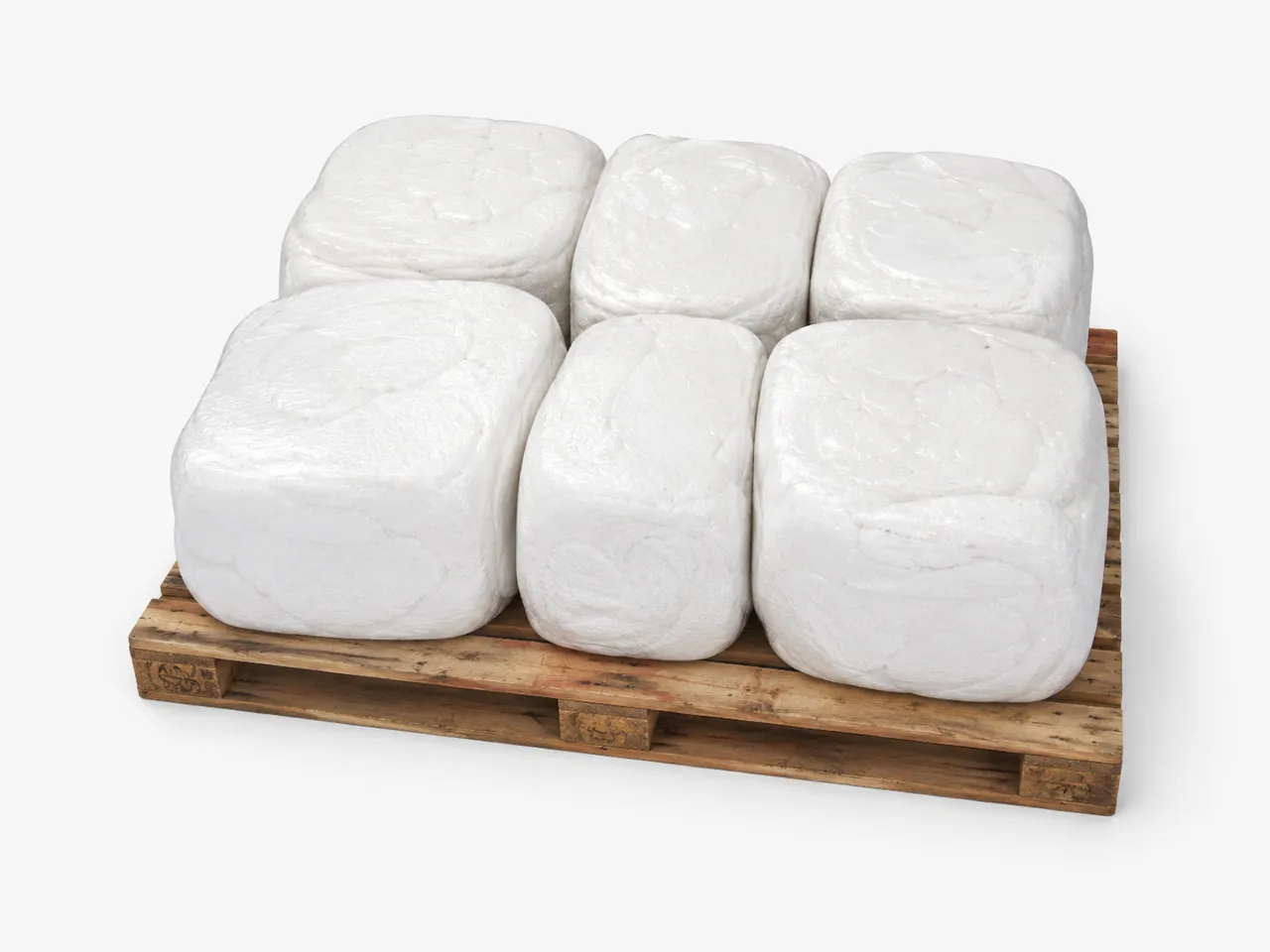

Densified blocks are cooled and discharged automatically. The compact ingots stack neatly on pallets for easy shipping and sale to recyclers.
Application Scenarios
Our EPS foam melting machines serve a wide range of industries that generate polystyrene waste.
Logistics & Packaging
Process EPS packaging inserts, protective corners, and cushioning materials from warehouses and distribution centers.
Seafood & Food Industry
Densify EPS fish boxes, food trays, and insulated containers used throughout the cold chain and food service industry.
Construction & Insulation
Recycle EPS insulation boards, ICF block offcuts, and construction waste foam from demolition and renovation projects.
Electronics & Appliances
Handle protective foam packaging from TVs, refrigerators, washing machines, and other consumer electronics.
Manufacturing Plants
Process EPS production trimmings, reject parts, and off-spec foam from molding facilities for in-house recycling.
Recycling Centers & MRFs
Central processing of collected EPS waste from municipal and commercial recycling programs, maximizing material value.
Why Choose Our EPS Melting Machine?
See how our hot-melt densification technology compares to other EPS recycling methods.
| Feature | Our Hot-Melt Densifier | Cold Compactor | Manual Handling |
|---|---|---|---|
| Volume Reduction Ratio | Up to 90:1 | Up to 50:1 | 1:1 (no reduction) |
| Output Quality | Dense solid ingots (high resale value) | Compressed blocks (moderate value) | Loose foam (low value) |
| Labor Required | 1 operator (auto-feed) | 1–2 operators | 3+ workers |
| Contamination Handling | Tolerates light contamination | Requires clean material | No filtering |
| Throughput Capacity | 40–200 kg/h | 30–100 kg/h | Very low |
| Transport Cost Savings | Up to 90% reduction | Up to 50% reduction | No savings |
See It in Action
Watch our EPS foam melting machine transform bulky polystyrene waste into dense, valuable ingots in real time.
Technical Specifications
Choose the right model for your throughput requirements — from compact units to high-capacity industrial systems.
| Parameter | GL-HM100 | GL-HM200 | GL-HM400 |
|---|---|---|---|
| Screw Diameter | Φ100 mm | Φ180–120 mm | Φ180–120 mm |
| Screw Length | 1,050 mm | 2,500 mm | 2,500 mm |
| Screw Speed | 150 r/min | 110 r/min | 110 r/min |
| Output Capacity | 40–50 kg/h | 80–120 kg/h | 180–200 kg/h |
| Screen Mesh Size | 40 mm | 50 mm | 50 mm |
| Motor Power | 5.5 kW | 15 kW | 22 kW |
| Heating Power | 4 kW | 10 kW | 14 kW |
| Crushing Power | 1.5 kW | 2.2 + 2.2 kW | 8.8 kW (4×2.2) |
| Dimensions (L×W×H) | 1,410×1,085×1,600 mm | 2,030×1,400×2,050 mm | 3,400×1,880×2,550 mm |
| Weight | 1,000 kg | 1,800 kg | 2,500 kg |
What Our Customers Say
Trusted by recycling operators and manufacturers around the world.
“We reduced our EPS waste volume by over 85% and cut our transport costs in half. The ingots sell at a good price to local recyclers. ROI was under 8 months.”
“The temperature control system is excellent — consistent ingot quality without any burning. We process 150+ kg/h of fish box foam daily with just one operator.”
“Compact machine, easy to install, and their engineer walked us through commissioning via video call. Been running smoothly for over a year now.”
Related Equipment
Build a complete EPS recycling line with these complementary machines.
EPS Hydraulic Compactor
Uses high pressure without heat to compact EPS into dense, manageable blocks for easy storage and transport.
EPS RecyclingEPS Foam Granulating Line
A complete system that crushes, melts, and pelletizes EPS waste into uniform, reusable plastic pellets.
PelletizingPlastic Pelletizing Machine
Convert melted EPS ingots and other plastics into uniform pellets ready for manufacturing new products.
Frequently Asked Questions
Everything you need to know about EPS foam melting and densification.
This machine is primarily designed for EPS (Expanded Polystyrene) foam, commonly found in packaging materials, fish boxes, insulation boards, and protective packaging. It effectively densifies these loose materials into solid ingots. Some models can also handle EPE (Expanded Polyethylene) and XPS (Extruded Polystyrene) with minor adjustments.
Our hot-melt densifier achieves a remarkable volume reduction ratio of up to 90:1. This means a full truckload of loose EPS foam can be compressed into a single pallet of dense ingots, dramatically reducing storage and transportation costs.
The system uses PID-controlled heating elements along the barrel to maintain optimal melting temperatures. This prevents overheating (which degrades plastic properties and generates fumes) and underheating (which causes incomplete melting). The result is consistent, high-quality ingots that fetch premium market prices.
We offer three models to match different waste volumes: the GL-HM100 (40–50 kg/h) for smaller operations, the GL-HM200 (80–120 kg/h) for medium-scale facilities, and the GL-HM400 (180–200 kg/h) for high-capacity industrial applications.
Every EPS foam melting machine includes a comprehensive 1-year limited warranty covering all mechanical components against manufacturing defects. We provide full installation guidance — either remotely via video call or on-site by experienced engineers — plus ongoing operational consultancy to ensure your recycling line runs at peak efficiency.
Start Recycling Your EPS Foam Today
Save on storage, slash transport costs, and turn polystyrene waste into revenue. Contact us for the latest pricing and specifications.
