PVC Pulverizing & Grinding
PVC Pulverizer & Grinding Machine for Pipe, Profile & Sheet Recycling
Purpose-built for PVC grinding, this machine turns PVC film, sheets, pipes, and profiles into consistent reusable powder. With configurable cooling and dust control, it helps you keep stable output quality while protecting blades and reducing operating costs.
Step by Step
Grinding Process Overview
A typical PVC grinding line focuses on stable temperature, controlled particle size, and efficient powder collection.
This PVC pulverizer is part of our micronize grinding system series, which includes disc mills and turbo mills for various polymer powder applications.
Feed & Pre-Cut
Sorted PVC scrap (film/sheets/profiles) is fed consistently for smooth grinding chamber loading.
Pulverizing
Rotor milling turns PVC into powder while process settings help keep output consistent and stable.
Screening & Collection
Powder passes through the screen to meet target mesh and is conveyed to a collection system.
Powder Handling
Collected powder can be stored, bagged, or fed to downstream processes; optional dust collection supports a cleaner operation.
Feed & Pre-Cut
Sorted PVC scrap (film/sheets/profiles) is fed consistently for smooth grinding chamber loading.
Pulverizing
Rotor milling turns PVC into powder while process settings help keep output consistent and stable.
Screening & Collection
Powder passes through the screen to meet target mesh and is conveyed to a collection system.
Powder Handling
Collected powder can be stored, bagged, or fed to downstream processes; optional dust collection supports a cleaner operation.
Engineered for PVC
Why Choose This Machine
Configured for stable PVC grinding performance — fine powder, controlled temperature, and cleaner operation for recycling and in-house scrap recovery.
Adjustable Powder Fineness
Powder fineness is set by the blade gap, disc speed, and screen: the grinding gap is adjusted from outside the closed chamber, so you can re-target the mesh range for downstream extrusion or compounding without dismantling the machine. Adaptable to multiple PVC forms and target meshes.
Temperature Control for PVC
A short residence time in the grinding chamber, combined with air/water cooling options, keeps the material below its softening point — minimizing thermal degradation and discoloration of PVC during long, continuous runs.
High Efficiency & Low Energy
High grinding capacity with low energy consumption supports stable output with strong cost performance across all PVC material types.
Built for Durability & Safety
Robust structure and wear-part options help extend service life and reduce maintenance downtime. Designed with stable guarding for reliable day-to-day production and safer maintenance routines.
See It in Action

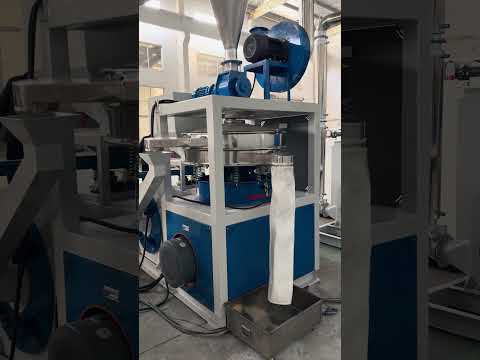

Watch how our PVC plastic grinding machine performs in a real production environment.
Versatile Use Cases
Typical Applications
From PVC film grinding to rigid PVC recycling, this grinder supports stable powder production for multiple downstream uses.
PVC Recycling
Convert post-industrial and selected post-consumer PVC into reusable powder for compounding, extrusion, and remanufacturing.
PVC Film & Sheet Grinding
Ideal for reclaiming PVC film and sheet trims with controlled fineness, helping you reduce raw material cost and waste.
In-House Scrap Recovery
Common in pipe, window/door profile, and flooring plants to reprocess production scrap and stabilize internal material loops.
Compounding & Extrusion Feed
Produce uniform PVC powder ready for direct feeding into compounding lines, extruders, or injection molding machines.
Machine Details & Gallery
A closer look at the PVC grinder structure and build quality.
Technical Specifications
Key configuration items for PVC grinding. Final selection depends on material, target mesh, and throughput.
Throughput is material-dependent: rigid PVC pipe and profile regrind runs at the high end of the range, while soft or low-MFI PE grinds slower at the same fineness. Send a sample for a grinding test to confirm rate and mesh on your actual material.
Performance Examples by Model
| Material | EGM-300 | EGM-500 | EGM-800 | Typical Fineness |
|---|---|---|---|---|
| Rigid PVC profile regrind | approx. 200 kg/h | approx. 400 kg/h | approx. 800 kg/h | ~100% below 600 μm (≈30 mesh), with screening |
| Rigid PVC pipe regrind | approx. 250 kg/h | approx. 450 kg/h | approx. 900 kg/h | ~96% below 800 μm (≈20 mesh) |
| LDPE (MFI 70) | approx. 120 kg/h | approx. 250 kg/h | approx. 400 kg/h | ~94% below 500 μm (≈35 mesh) |
Swipe to see the full table →
Performance examples at typical settings. Fineness is adjustable via screen and blade gap — configurations up to 60 mesh (≈250 μm) are available, with throughput decreasing at finer settings. Each machine is custom-configured — send a sample for a grinding test to confirm rate and mesh on your material. Need a fully automated setup? See our automatic PVC pulverizing system with PLC feed control, conveying, and collection.
| Materials | PVC film, sheets, pipes, profiles; other plastics subject to configuration |
|---|---|
| Cooling | Air cooling / water cooling options for temperature control |
| Dust Collection | Optional dust control system for cleaner operation |
| Automation | Manual / semi-automatic / fully automatic configurations |
| Warranty | 1-year limited warranty with commissioning support and after-sales service |
Reliable Support Throughout the Equipment Lifecycle
From installation planning to routine maintenance, our service team helps keep your PVC grinding machine operating safely, consistently, and efficiently.
1-Year Limited Warranty
Coverage includes manufacturing defects in major mechanical and electrical components for one year. Normal wear parts and damage caused by improper operation are handled separately.
Installation Guidance
We provide layout, foundation, utility, dust-control, line-integration, and commissioning guidance to support smooth startup.
Spare Parts Supply
Replacement blades, screens, bearings, seals, electrical components, and other service parts are available for scheduled maintenance and long-term operation.
Technical Assistance
Remote troubleshooting, operating recommendations, maintenance guidance, and optional on-site service are available when additional support is required.
Frequently Asked Questions
Our industrial grinders are designed to process a wide range of rigid PVC scrap, including post-industrial pipes, window and door profiles, siding, fence panels, sheets, and other hard plastic waste.
The final particle size (mesh) is adjustable. Output capacity depends on model and raw material, typically ranging from 100 kg/h to over 500 kg/h for standard configurations.
This industrial model is a versatile workhorse for general recycling with excellent durability and cost-effectiveness. High-performance models are engineered for extremely fine, uniform powders and maximum throughput with advanced cooling and milling designs.
Routine checks include blade sharpness and replacement, bearing lubrication, and screen cleaning. We provide recommended maintenance schedules and support for spare parts.
Get a Custom PVC Grinding Solution
Share your material type, target mesh, and throughput — our team will recommend the right configuration for your line.
