Mobile Plastic Shredder | On-Site Plastic Pipe Recycling Machine
Mobile Pipe Shredder for Large-Diameter HDPE and PP Pipes
This mobile pipe shredder — also marketed as a mobile plastic shredder, plastic pipe shredder, or pipe recycling machine — is engineered for on-site processing of bulky HDPE and PP pipes, compatible polyolefin profiles, and extrusion scrap. It helps contractors, municipal projects, pipe extrusion plants, and recycling operators cut transport costs, reduce handling risk, and convert oversized plastic pipes into manageable chips before crushing, washing, or pelletizing.
Why Choose a Mobile Pipe Shredder
A mobile plastic shredder configuration gives plastic pipe recycling projects more flexibility where bulky HDPE or PP pipe waste is generated far from a fixed recycling line. The same machine can also process compatible polyolefin profile scrap, oversized extrusion lumps, and other large-format production waste.
On-Site Size Reduction Saves Transport Cost
Instead of hauling long, low-density plastic pipes to a central plant, operators can shred them at the job site or storage yard first. That reduces loading volume, simplifies logistics, and lowers transport and labor costs on large pipe recycling projects.
Handles HDPE & PP Pipes up to 630 mm
The wide feed design accepts long HDPE and PP pipes or profiles up to 630 mm in diameter, making this mobile plastic shredder suitable for municipal and industrial polyolefin pipe waste streams. This configuration is not intended for PVC.
Safer Horizontal Loading
Horizontal feeding and hydraulic pushing reduce manual cutting and unstable handling compared with traditional on-site torching or sawing.
Prepared for Downstream Crushing and Recycling
The shredder creates a controlled first-stage chip size that is easier to convey, store, and feed into pipe crushers, washing lines, drying systems, and pelletizing equipment. This makes the mobile unit a practical front end for distributed pipe recycling operations.
Mobile Pipe Shredding vs. Hauling Unprocessed Pipes
For demolition projects, remote pipe yards, and municipal infrastructure upgrades, mobile shredding often improves project economics.
| Project Factor | Move Unprocessed Pipes | Use a Mobile Pipe Shredder |
|---|---|---|
| Transport Efficiency | Bulky loads waste trailer capacity | Reduced volume after on-site shredding |
| Handling Labor | More repositioning and manual cutting | Hydraulic feed improves loading workflow |
| Remote Site Flexibility | Dependent on transport availability | Size reduction happens where scrap is generated |
| Downstream Integration | Irregular prep for next-stage machines | Uniform first-stage chips for crushers and washing lines |
How the Mobile Pipe Shredding Process Works
A compact four-step workflow for processing large plastic pipes directly at the source.
Transport to Site
Move the shredder to the pipe yard, construction site, demolition zone, or temporary recycling point where pipe scrap is generated.
Load Long Pipes
Place large-diameter pipe lengths on the horizontal loading dock. The design supports safer handling of long rigid pipes.
Hydraulic Feeding and Shredding
A hydraulic ram continuously pushes pipe into the rotor so material is gripped, cut, and reduced into manageable chips with stable throughput.
Discharge for Next Stage
Shredded material is discharged for bagging, transfer, secondary crushing, or direct feeding into a full pipe recycling line.
Transport to Site
Move the shredder to the pipe yard, construction site, demolition zone, or temporary recycling point where pipe scrap is generated.
Load Long Pipes
Place large-diameter pipe lengths on the horizontal loading dock. The design supports safer handling of long rigid pipes.
Hydraulic Feeding and Shredding
A hydraulic ram continuously pushes pipe into the rotor so material is gripped, cut, and reduced into manageable chips with stable throughput.
Discharge for Next Stage
Shredded material is discharged for bagging, transfer, secondary crushing, or direct feeding into a full pipe recycling line.
Typical Applications
A mobile plastic shredder fits projects where plastic pipe scrap is bulky, difficult to move, or generated across multiple locations. The same unit handles HDPE pipe shredding, PP pipe and profile reduction, and compatible polyolefin extrusion scrap.
Infrastructure Replacement Projects
Ideal for water, drainage, gas, and municipal projects where old plastic pipe is removed on site.
Pipe Storage Yards
Processes rejected stock, damaged inventory, and oversized HDPE or PP pipe stored far from a fixed recycling line.
Pipe Extrusion Plants
Reclaims long start-up waste and off-spec pipe sections without sending every load back to a central shredder room.
Distributed Recycling Operations
Supports mobile collection and first-stage reduction before pipe scrap is consolidated for washing, drying, and pelletizing.

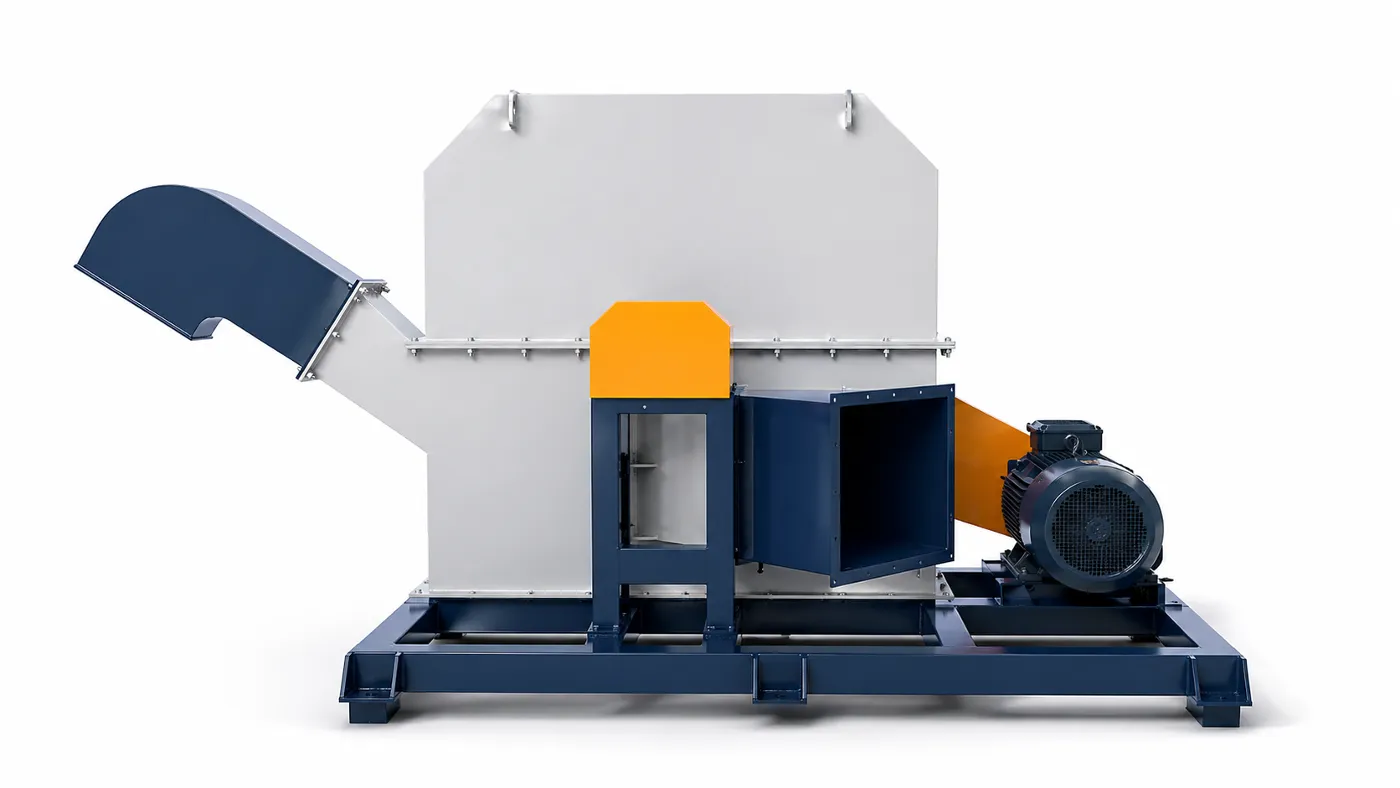

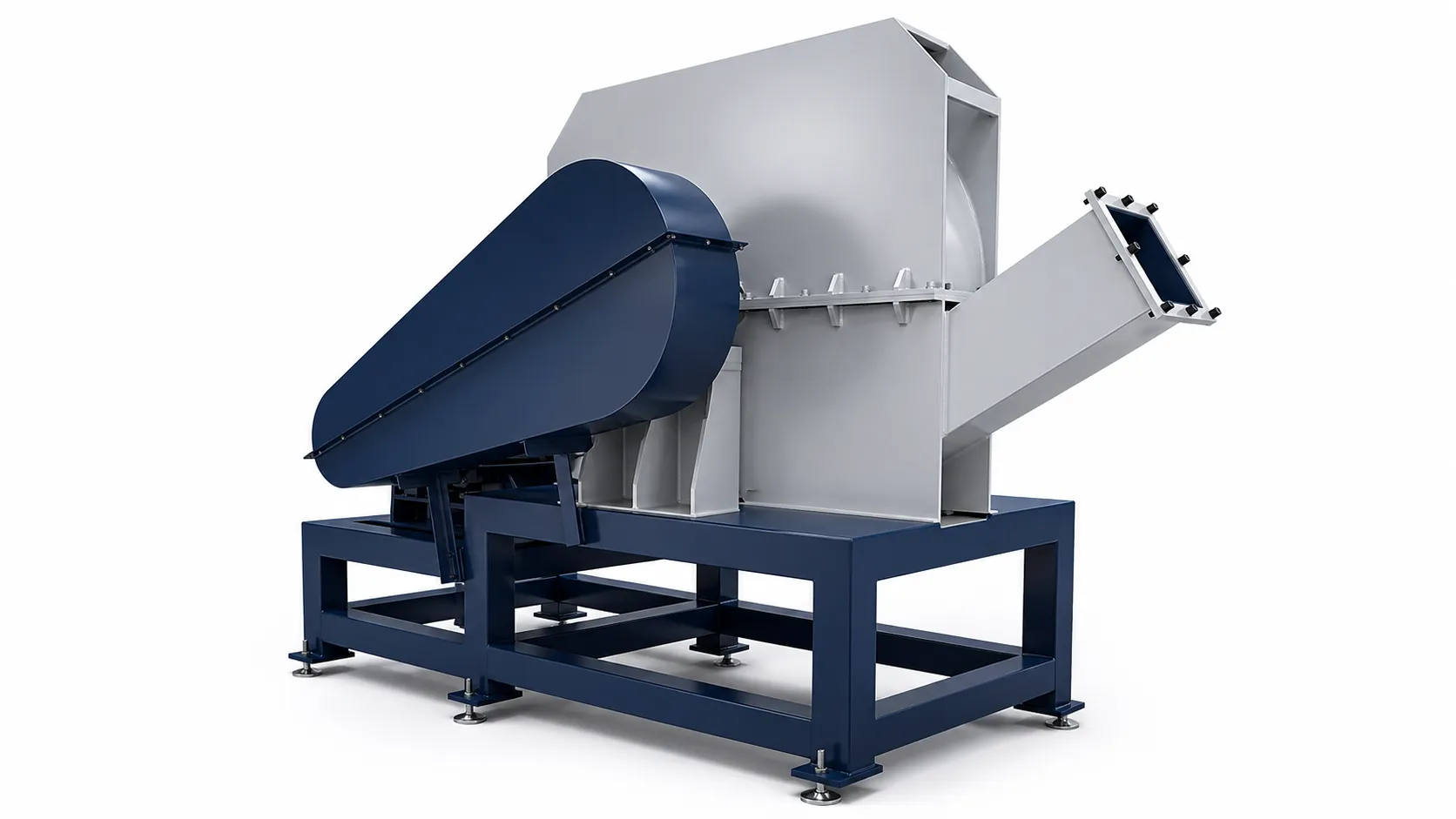

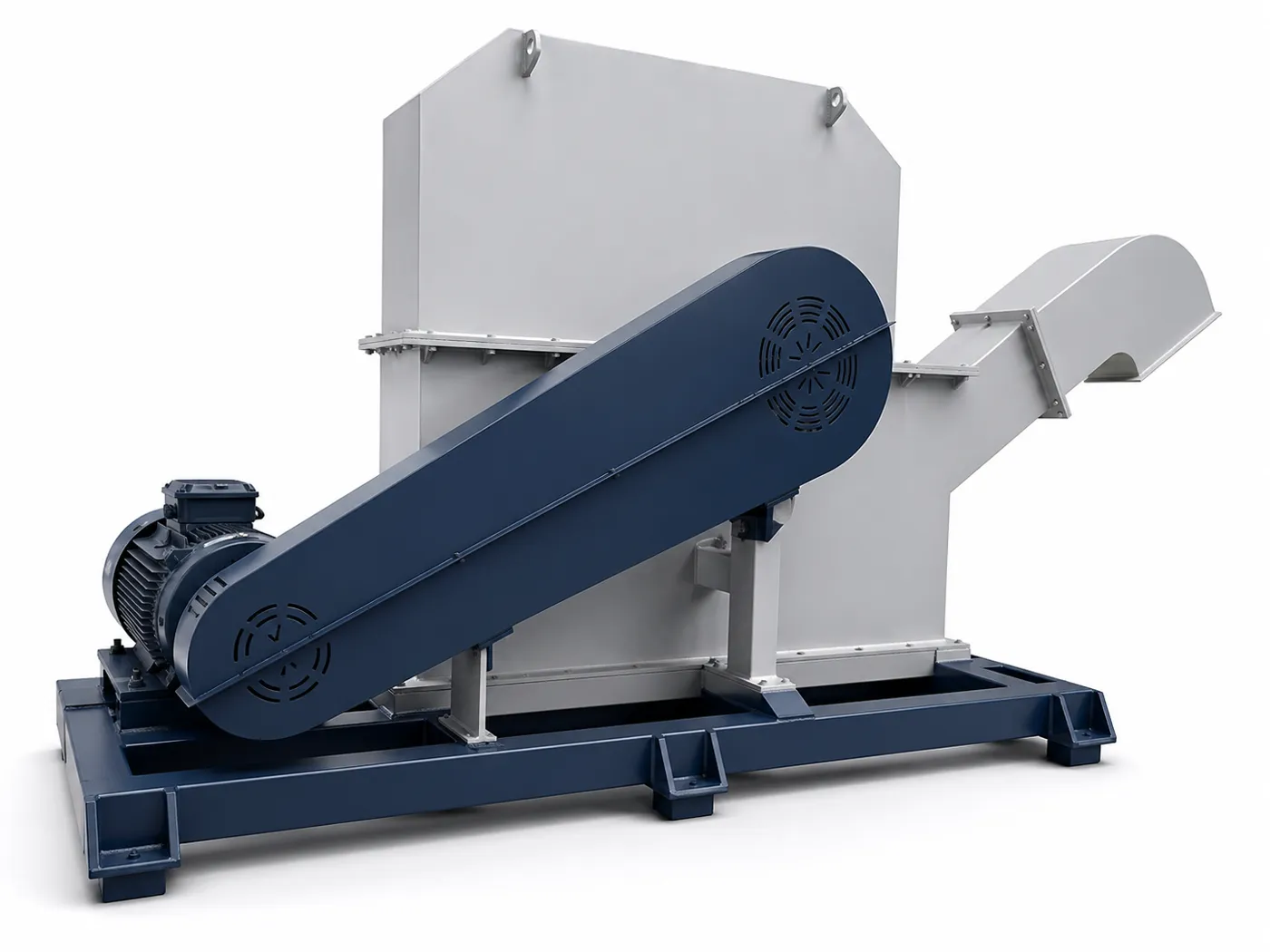

Machine Gallery
Field-ready mobile pipe shredding equipment for large-diameter rigid plastic pipes.
Watch the Mobile Pipe Shredder in Operation
See how the mobile pipe shredder supports on-site size reduction for large plastic pipe recycling projects.
Key Specifications
Reference data for evaluating this mobile plastic shredder for large-diameter HDPE and PP pipe processing. Final configuration and capacity are confirmed from the material, pipe dimensions, target output, mobility requirements, and site power conditions. PVC is not supported by this machine.
| Specification | Value |
|---|---|
| Compatible Materials | HDPE and PP pipes/profiles (PVC not supported) |
| Maximum Pipe Length | 3 meters |
| Maximum Pipe Diameter | 630 mm |
| First-Stage Output Size | Approx. 120 × 40 mm (material and configuration dependent) |
| Feeding Method | Horizontal dock with hydraulic pusher |
| Typical Use Case | On-site first-stage shredding before crushing or washing |
Reliable Support Throughout the Equipment Lifecycle
From installation planning to routine maintenance, our service team helps keep your equipment operating safely, consistently, and efficiently.
1-Year Limited Warranty
Coverage includes manufacturing defects in major mechanical and electrical components for one year. Normal wear parts and damage caused by improper operation are handled separately.
Installation Guidance
We provide layout, foundation, utility, clearance, line-integration, and commissioning guidance to support a smooth installation and reliable startup.
Spare Parts Supply
Replacement wear parts, bearings, seals, sensors, electrical components, and other service items are available for scheduled maintenance and long-term operation.
Technical Assistance
Remote troubleshooting, operating recommendations, maintenance guidance, and optional on-site service are available when your project needs additional support.
Frequently Asked Questions
Key questions from customers comparing mobile and fixed pipe shredding solutions.
The standard configuration is designed for large-diameter HDPE and PP pipes, plus compatible polyolefin profiles and extrusion scrap, subject to pipe diameter, wall thickness, and site conditions. It is not designed for PVC.
Depending on the project, the machine can be configured for generator-based operation or connection to site power where electrical supply is available.
Yes. The mobile shredder is usually the first size-reduction stage. Its output can feed a dedicated pipe crusher or granulator to reach smaller flake sizes for washing and pelletizing.
A mobile unit is most valuable when pipe waste is generated across multiple sites, transport is expensive, or the project needs flexible on-site size reduction before material is moved to a central processing line.
A mobile plastic shredder is a trailer- or skid-mounted shredding unit that brings size-reduction capability to the location where plastic waste is generated, instead of hauling bulky scrap to a fixed recycling plant. For large HDPE and PP pipes and compatible polyolefin profiles, it reduces handling volume and prepares first-stage chips for downstream crushing and washing.
No. This mobile pipe shredder is configured for HDPE and PP pipes and compatible polyolefin profiles; PVC is not supported. If your feedstock includes PVC, tell our sales team so we can recommend separate equipment instead of including PVC in this machine’s duty.
Pricing is quotation-based because trailer or skid mounting, rotor and motor configuration, hydraulic package, generator or site-power interface, discharge system, and optional downstream equipment all affect the total. Send the material, pipe diameter, wall thickness, pipe length, target throughput, mobility requirements, and site power details for an accurate proposal.
Throughput must be sized against the actual feedstock. It varies with material, pipe diameter and wall thickness, pipe length, rotor and motor configuration, feeding conditions, and target output size. We confirm capacity only after reviewing samples or complete pipe specifications; request a test or project-specific calculation before ordering.
Get a Quote for Your Mobile Pipe Recycling Project
Tell us your pipe diameter range, material type, site power conditions, and target throughput. We will recommend the right mobile shredder setup and downstream equipment.
