Kunststoff Granulatiermaschinen für Recycling und In-Haus-Wiederverwertung
Wet, rigid, vertical, PET-bottle, and integrated shredder-granulator machines from 100 kg/h to 2,000 kg/h. SKD-11 blades, custom screen sizes, direct from the manufacturer.
What a Plastic Granulator Does and Where It Sits in Your Line
A plastic granulator is the precision size-reducer that turns scrap into uniform regrind for extrusion, pelletizing, washing, or resale.
A plastic granulator reduces runners, sprues, defective parts, bottles, film, pipe, and sheet into uniform regrind granules, typically 4-18 mm. Where a shredder tears large items into coarse strips at high torque and low rpm, and a pelletizer turns molten polymer into round pellets, the granulator sits between them with high-speed rotors, tool-steel blades, and a sizing screen that defines final particle size. For injection-molding shops, a beside-the-press granulator reclaims hot runners in-line. For recycling plants, a central granulator downstream of a shredder produces the regrind that feeds a washing line, extruder, or pelletizer. For machine comparisons, see our Schredder vs. Granulatierer vs. Pelletizer guide or read Funktionsweise eines Kunststoffgranulators. Planning a turnkey project? Start with our Recyclinglösungen auf Linienebene.
Kernvorteile unserer Brecher- und Granulatorserie
Model range, cutting geometry, usability, construction, and control logic are matched to your material and target regrind quality.
Vielseitige Modellpalette
Von kompakten Einheiten bis hin zu Großmaschinen für nasse und trockene Materialien, PET, PVC und sperrige Hartkunststoffe.
Hochleistungsschneiden
Specialized rotors including V-cut and claw-blade designs, combined with durable D2 steel knives, improve size reduction and output uniformity.
Auf Benutzerfreundlichkeit ausgelegt
Easy-access chambers, adjustable blades, and modular sieves simplify daily operation and maintenance.
Robuste Konstruktion
Heavy-duty frames and quality components support long service life when processing tough rigid and contaminated material streams.
Smart Control-fähig
Optional PLC integration supports automated feeding, overload protection, and synchronized line operation control.
Entdecken Sie unser Angebot an Brechern und Granulatoren
Choose the model family by feed size, contamination level, rotor style, and target output.
Kleine Brechmaschine
Eine effiziente und vielseitige Lösung mit verstellbaren Klingen und einem modularen Sieb für moderne Recyclingbetriebe.
Integrierter Zerkleinerer-Granulator
Vereint Hochleistungszerkleinerung und präzise Granulierung in einer kompakten Maschine für unterschiedliche Materialien.
Vertikalgranulator für PVC-Rohre und Fensterprofile
Heavy-duty feeding for long pipes and profiles without pre-cutting, improving safety and efficiency.
Nasser Kunststoffgranulator
Cleans while granulating, ideal for wet or contaminated plastic waste and cleaner particles.
Kaltschneidemaschine für Bleibarren
A safer, fume-free way to produce lead granules by transforming solid ingots without melting.
Extra großer Granulator aus starrem Kunststoff
Tackles bulky waste like drums, crates, and pallets, turning them into uniform high-value regrind.

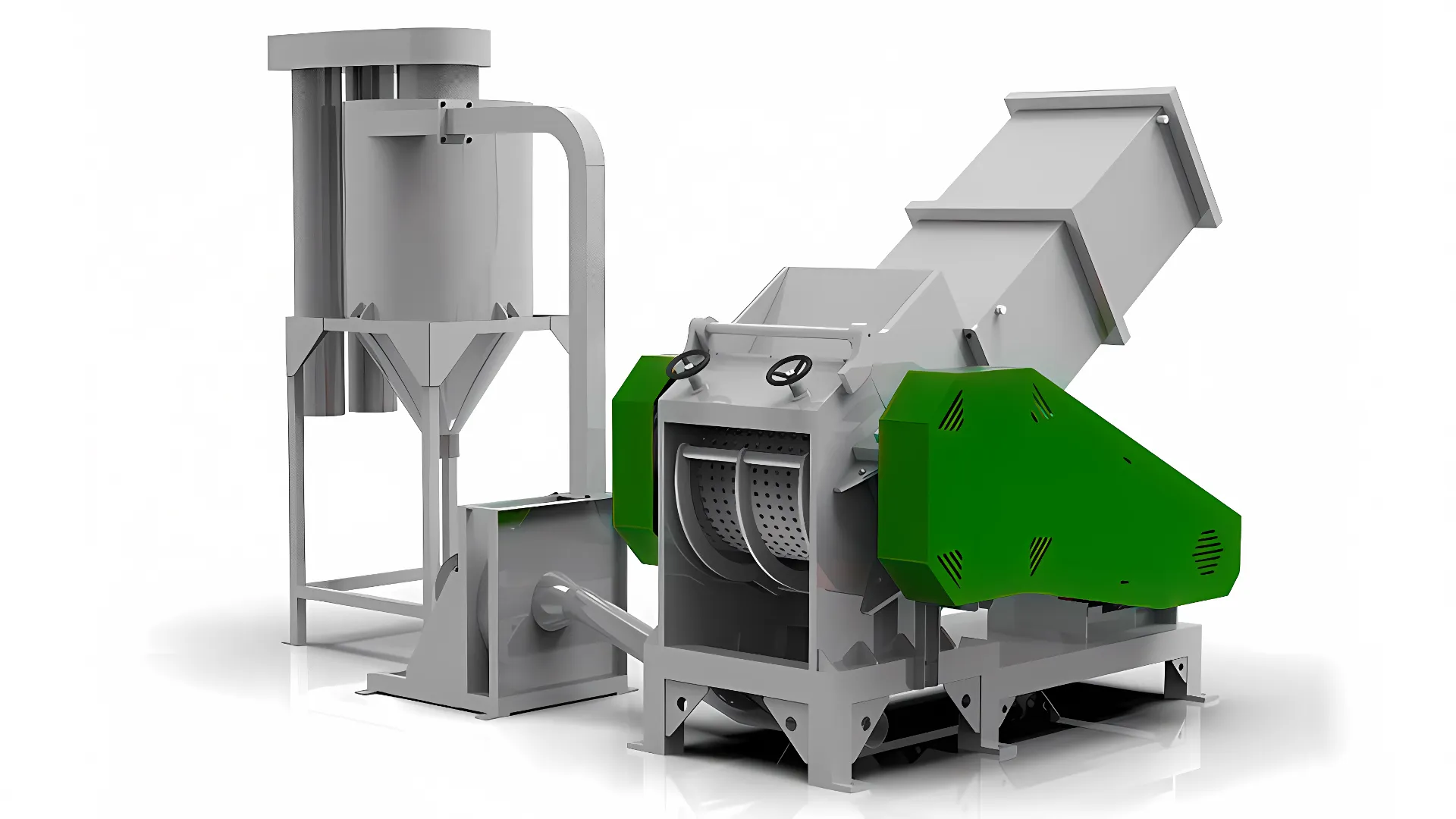

Horizontaler Brecher für Kunststoffwanne und PVC-Platte
Konzipiert für flache, sperrige Kunststoffe mit horizontaler Zuführung für eine stabile Verarbeitung und gleichmäßiges Mahlgut.
Technische Parameter (Standardserie)
Typical examples for the standard plastic granulator series. Final configuration depends on material, throughput, and target flake size.
| Modell | Motor (kW) | Bewegliche Klingen | Feststehende Klingen | Rotor (mm) | Einfüllöffnung (mm) |
|---|---|---|---|---|---|
| PC400 | 15 | 12 | 2 | 380×400 | 400×320 |
| PC500 | 22 | 18 | 2 | 380×500 | 500×320 |
| PC600 | 30 | 24 | 4 | 450×600 | 600×450 |
| PC800 | 45 | 30 | 4 | 580×800 | 800×550 |
Bewegen Sie zur Seite, um die vollständige Tabelle anzuzeigen.
Notiz: machines can be customized to your material and output requirements.
Wie wählen Sie die richtige Kunststoff Granulatiermaschine in 4 Fragen
Use these four checks to narrow the machine type before sizing the rotor, motor, screen, and blade steel.
1. What is your feedstock?
Bottles and film: wet or PET-flake granulator. Rigid lumps and purging: heavy-duty rigid. Long pipe and profile: vertical. Mixed or unsorted bulky scrap: integrated shredder-granulator.
2. Wie hoch ist Ihr Durchsatz?
Beside-the-press reclaim: 50-200 kg/h. Mid-scale recycling: 300-900 kg/h. Central plant: 1,500-2,000 kg/h. Size 20% above peak to protect the motor.
3. Welche Granulatgröße benötigen Sie?
Extruder feed: 6-10 mm. Pellet line: 8-14 mm. Resale as flake: 10-18 mm. See our Siebgrößenanleitung.
4. Schmutziger oder sauberer Eingang?
Clean scrap: standard D2 or SKD-11 blades. Labeled bottles or film with sand: wet granulator plus stainless hopper. Glass-filled or fiber-reinforced scrap: CPM-10V or carbide.
Möchten Sie die lange Form? Lesen Sie die vollständige Granulatierer-Auswahlanleitung →
Granulatierer vs. Schredder vs. Mahler vs. Pelletizer
All four reduce plastic at different stages, rpm ranges, and output sizes.
| Aktenvernichter | Granulator | Mehler / Zerkleinerer | Pelletierer | |
|---|---|---|---|---|
| Eingangsgröße | Bis zu 2 m | Bis zu 800 mm | Granulat | Granulat |
| Ausgabegröße | 20-100 mm | 4-18 mm | 0.1-1 mm powder | 2-4 mm pellets |
| Drehzahl | 20-120 | 400-800 | 3,000-6,000 | 30-60 |
| Drehmoment | Sehr hoch | Medium | Niedrig | High (screw) |
| Typical Use | Initial size reduction | Second-stage / in-house | PVC and rotomolding powder | Final reprocessing |
Bewegen Sie zur Seite, um die vollständige Tabelle anzuzeigen.
Where Energycle Granulators Run Every Day
Granulators are sized around the real feedstock, contamination level, and downstream process.
Recycling von PET-Flaschen
Hot-washed PET flake production, 8-14 mm output feeding food-grade pellet lines. See PET line case study →
HDPE Drums & IBC
Heavy-duty rigid granulator with oversized hopper for IBC totes, HDPE drums, and blow-molded purging up to 800 mm.
PP Woven Bags & Film
Wet granulator with anti-wrap rotor for LDPE film, PP woven bags, and agricultural film.
PVC Pipe & Profile
Vertical granulator processes 6-meter PVC pipe and window profile without pre-cutting.
In-House Runner Reclaim
Beside-the-press PC400 reclaims sprues and runners hot, in-line with injection molding.
Fiber-Reinforced Plastic
Reinforced rotors with CPM-10V or carbide-tipped blades for glass-filled PA, PBT, and composite scrap.
Granulator Blades & Wear Parts
Blades are the number one consumable on any granulator. Choose the right steel and plan a sharpening cycle from day one.
Ersatzmesser für Granulatoren
Rotor and bed knives in SKD-11, DC53, and CPM-10V. HRC 58-62. Custom lengths for any rotor diameter.
SchärfungAutomatischer Messerschleifer
Resharpen granulator blades to ≤0.03 mm precision. 6-10 re-grinds per blade set before replacement.
AnleitungGranulatormesser auswählen
Match blade steel, bevel angle, and hardness to your plastic feedstock.
Cost AnalysisBlade Material vs. Cost
When premium steel pays back, and when D2 is the right answer.
Keep Every Granulator Running at Peak Output
A simple maintenance rhythm protects output, energy cost, and regrind consistency.
Knife clearance – weekly
Rotor-to-bed knife gap should stay within 0.15-0.30 mm. A gap above 0.5 mm wastes 15-25% of motor energy and tears plastic instead of cutting.
Siebprüfung
Replace bent or worn screens. Holes elongated beyond 110% let oversize regrind through. See how screen size affects quality.
Resharpen, do not replace
Tool-steel blades can be reground 6-10 times. An automatic grinder pays for itself within one blade set.
Bearing & belt schedule
Grease bearings every 500 hours and retension V-belts every 200 hours. See our Wartung Und Fehlerbehebung guides.
Plastic Granulator – Frequently Asked Questions
Quick answers for cost, machine type, screen size, blade life, power draw, and complete-line planning.
Fordern Sie eine individuelle Lösung und ein Angebot an
To get latest prices, lead times, and a crusher or granulator matched to your material and target flake size, send us your requirements. If you need a full line from shredding to washing, drying, and pelletizing, start with Recyclinglösungen.
Tell us what you need
Material type, target kg/h, preferred flake size, wet or dry process, and whether this is a standalone machine or part of a complete recycling line.
